Nissan Juke Service and Repair Manual : Location of plastic parts

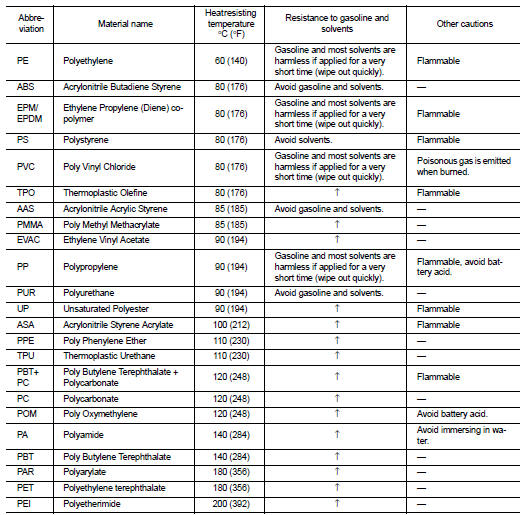

Precautions for Plastics

CAUTION:


CAUTION:
• When repairing and painting a portion of the body adjacent to plastic parts, consider their characteristics (influence of heat and solvent) and remove them if necessary or take suitable measures to protect them.

• Plastic parts should be repaired and painted using methods suiting the materials, characteristics

Location of Plastic Parts

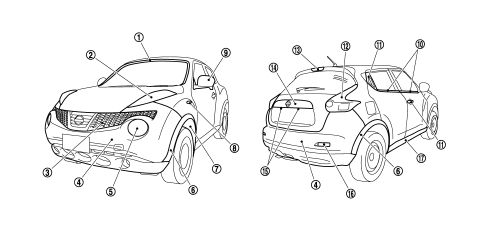

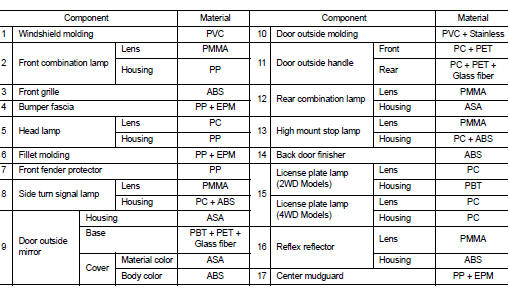

Exterior


    Body alignment
    Body Center Marks (RHD Models) A mark is placed on each part of the body to indicate the vehicle center. When repairing the vehicle frame (members, pillars, etc.) damaged by an accident which it e ...

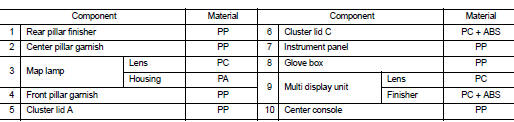

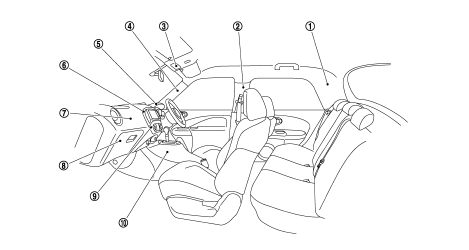

    Exterior
    ...
