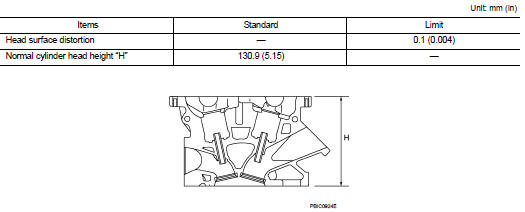

Nissan Juke Service and Repair Manual : Cylinder Head

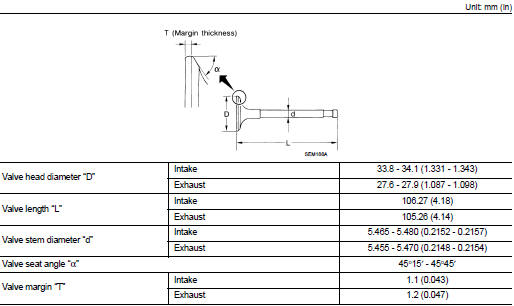

VALVE DIMENSIONS


VALVE DIMENSIONS

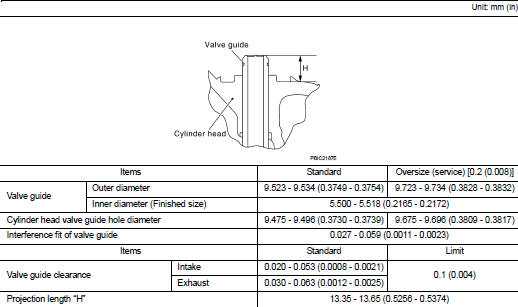

VALVE GUIDE


VALVE GUIDE

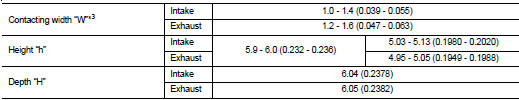

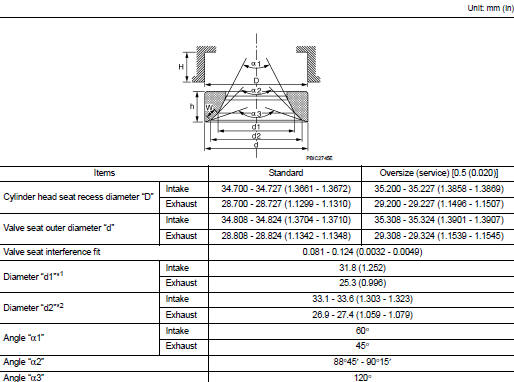

VALVE SEAT


VALVE SEAT


*1: Diameter made by intersection point of conic angles α1 and α2


*1: Diameter made by intersection point of conic angles α1 and α2 *2: Diameter made by intersection point of conic angles α2 and α3 *3: Machining data

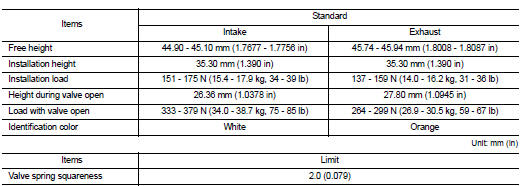

VALVE SPRING

Cylinder Block


    Camshaft
    *: Total indicator readin VALVE LIFTER VALVE CLEARANCE *: Approximately 80C (176F) AVAILABLE VALVE LIFTER ...

    Cylinder Block
    AVAILABLE PISTON PISTON RING PISTON PIN CONNECTING ROD *: After installing in connecting rod CRANKSHAFT *: Total indicator reading ...
