Nissan Juke Service and Repair Manual : B210F shift position/clutch interlock switch

DTC Logic

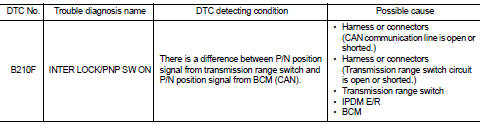

DTC DETECTION LOGIC

NOTE

:
If DTC B210F is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to PCS- 30, "DTC Logic".

DTC CONFIRMATION PROCEDURE


DTC CONFIRMATION PROCEDURE

1.PERFORM DTC CONFIRMATION PROCEDURE

1. Shift selector lever to the P position.

2. Turn ignition switch ON and wait 1 second or more.

3. Shift selector lever to the N position and wait 1 second or more.

4. Shift selector lever to any position other than P and N, and wait 1 second or more.

5. Check DTC in “Self Diagnostic Result” mode of “IPDM E/R” using CONSULT-III.

Is DTC detected? YES >> Go to SEC-151, "Diagnosis Procedure".

NO >> INSPECTION END

Diagnosis Procedure

1.CHECK DTC OF BCM

Check DTC in “Self Diagnostic Result” mode of “BCM” using CONSULT-III.

Is DTC detected? YES >> Perform the trouble diagnosis related to the detected DTC. Refer to BCS-67, "DTC Index".

NO >> GO TO 2.

2.CHECK DTC OF TCM

Check DTC in “Self Diagnostic Result” mode of “TCM” using CONSULT-III.

Is DTC detected? YES >> Perform the trouble diagnosis related to the detected DTC. Refer to TM-171, "DTC Index" (CVT: RE0F10B) or TM-366, "DTC Index" (CVT: RE0F11A).

NO >> GO TO 3.

3.CHECK IPDM E/R SIGNAL CIRCUIT OPEN AND SHORT

1. Turn ignition switch OFF.

2. Disconnect IPDM E/R connector.

3. Disconnect transmission range switch connector.

4. Check continuity between IPDM E/R harness connector and transmission range switch harness connector.

5. Check continuity between IPDM E/R harness connector and ground.


5. Check continuity between IPDM E/R harness connector and ground.

Is the inspection result normal?


Is the inspection result normal? YES >> Replace IPDM E/R. Refer to PCS-34, "Removal and Installation".

NO >> Repair or replace harness.
