Nissan Juke Service and Repair Manual : Symptom diagnosis

Noise, vibration and harshness (NVH) Troubleshooting

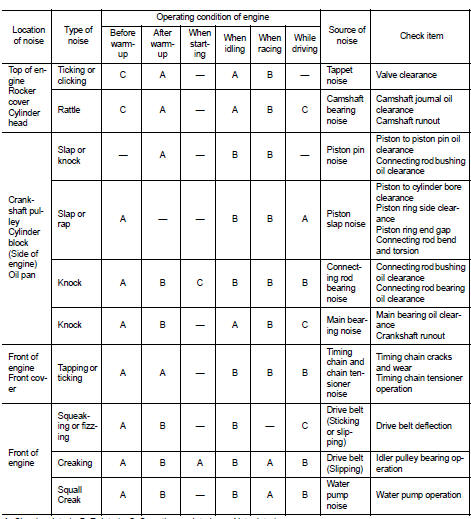

NVH troubleshooting Chart

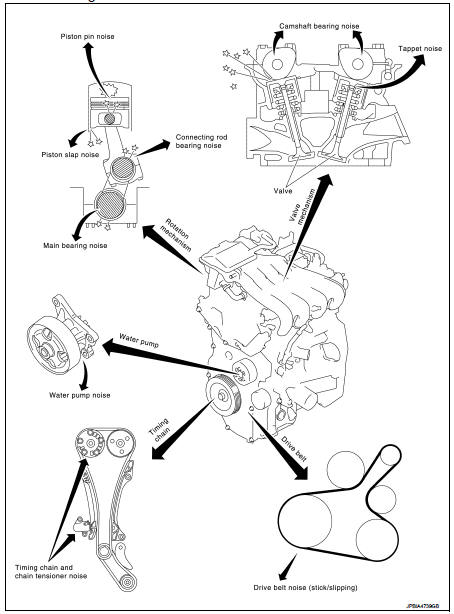

1. Locate the area where noise occurs.


1. Locate the area where noise occurs.

2. Confirm the type of noise.

3. Specify the operating condition of engine.

4. Check specified noise source.

If necessary, repair or replace these parts.

A: Closely related B: Related C: Sometimes related —: Not related


A: Closely related B: Related C: Sometimes related —: Not related

    Compression pressure
    Inspection 1. Warm up engine thoroughly. Then, stop it. 2. Release fuel pressure. Refer to EC-551, "Work Procedure". 3. Remove ignition coil and spark plug from each cylinder. Refer to EM ...
