Nissan Juke Service and Repair Manual : Symptom diagnosis

SYSTEM SYMPTOM

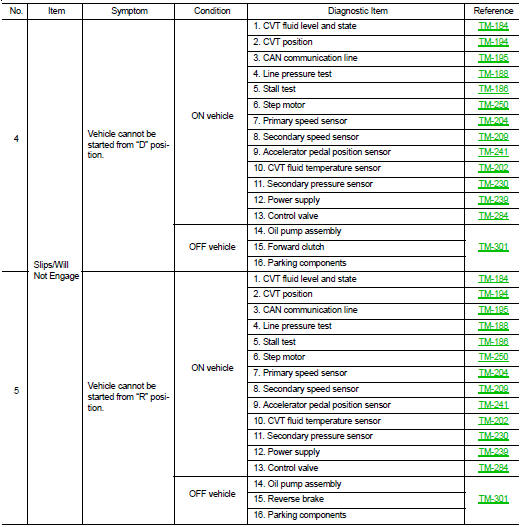

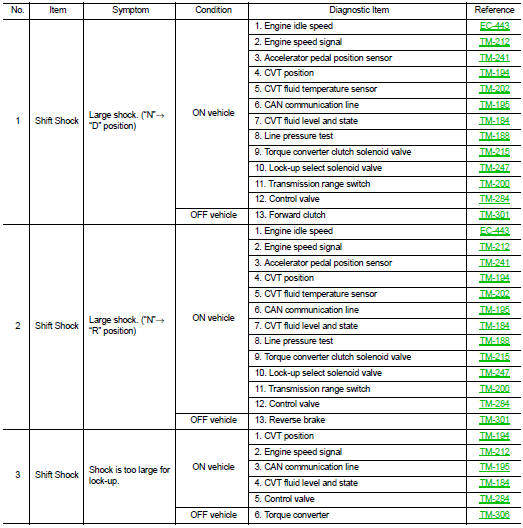

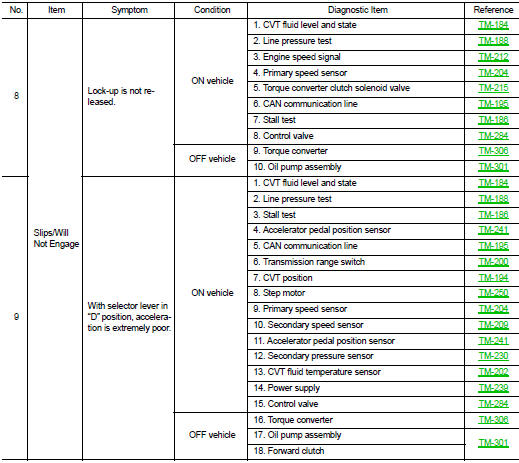

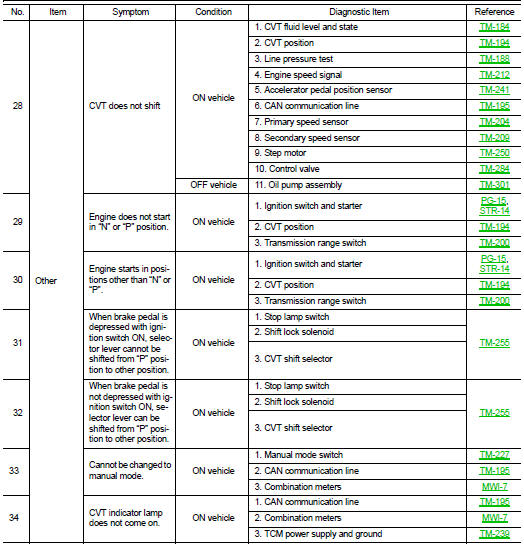

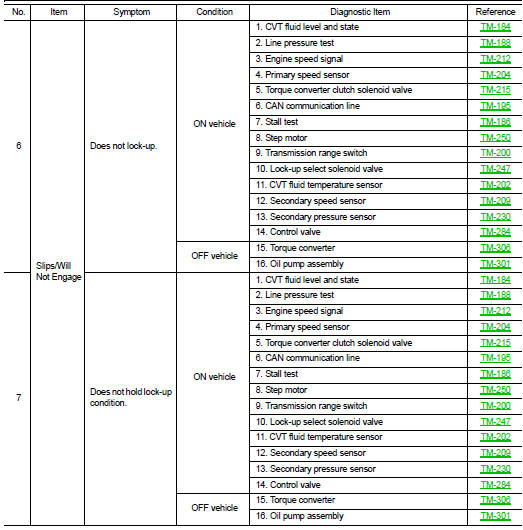

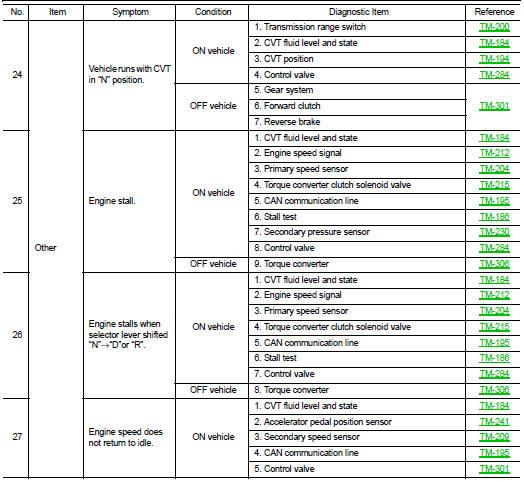

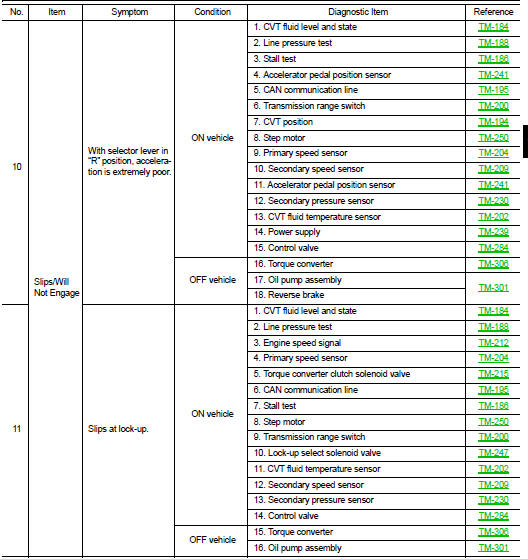

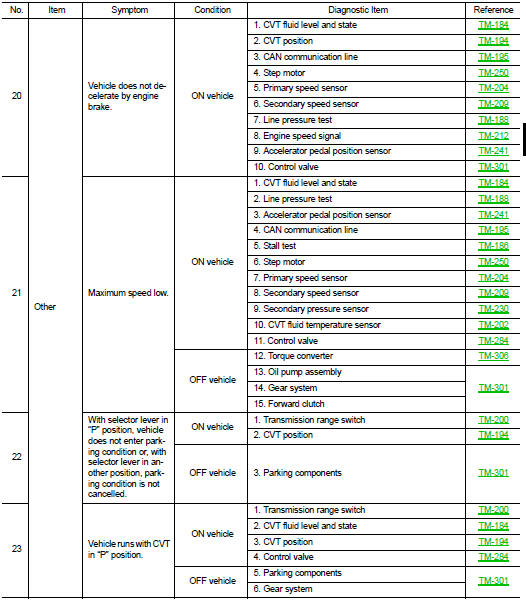

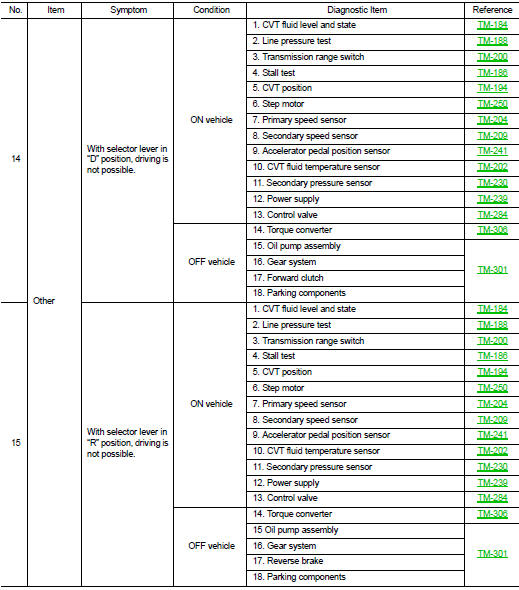

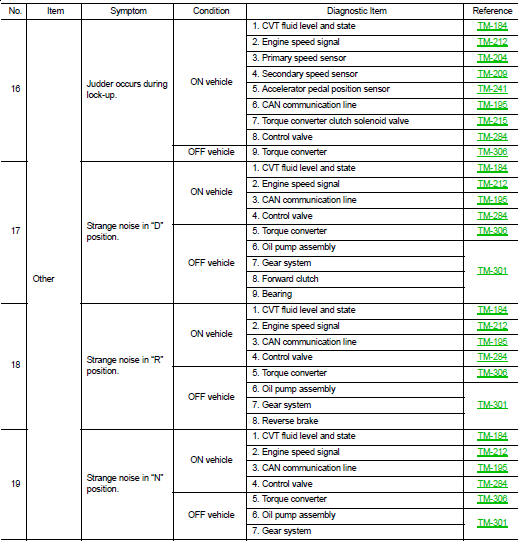

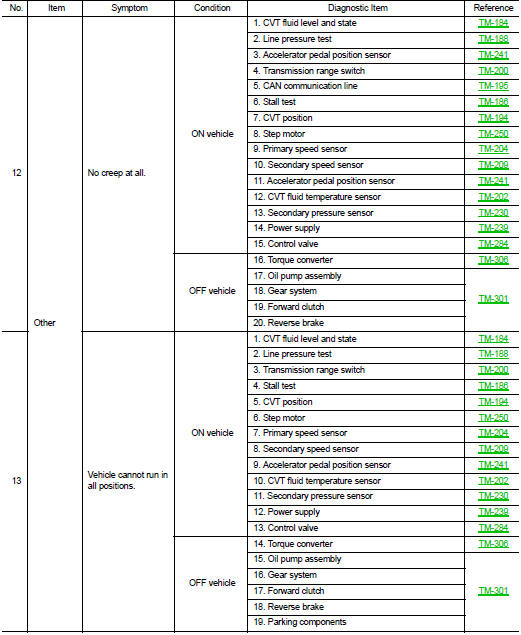

Symptom Table

The diagnostics item numbers show the sequence for inspection. Inspect in order from item 1.











Removal and installation


    Shift lock system
    Component Function Check 1.CHECK SHIFT LOCK OPERATION (PART 1) 1. Turn ignition switch ON. 2. Shift the selector lever to “P” position. 3. Attempt to shift the selector lever to any other than pos ...
