Nissan Juke Service and Repair Manual : P1739 1GR incorrect ratio
DTC Logic

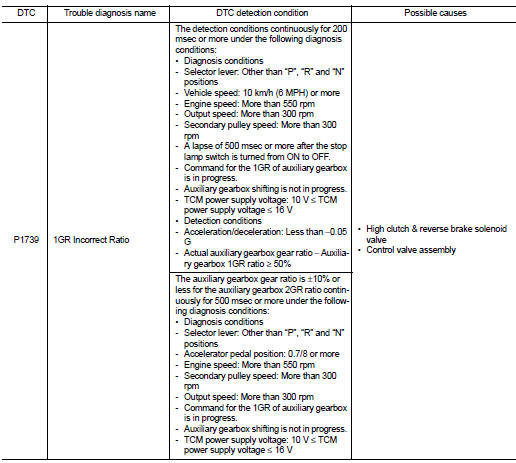

DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
CAUTION:
• Be sure to perform “TM-442, "Diagnosis Procedure"” and then perform “DTC
CONFIRMATION PROCEDURE”.
• Never perform "DTC CONFIRMATION PROCEDURE" before the repairs. Doing so may result in a secondary malfunction.
• Be careful of the driving speed.
1.PREPARATION BEFORE WORK
If another "DTC CONFIRMATION PROCEDURE" occurs just before, turn ignition switch OFF and wait for at least 10 seconds, then perform the next test.
>> GO TO 2.
2.CHECK DTC DETECTION
1. Start the engine.
2. Drive the vehicle.
3. Maintain the following conditions for 10 seconds or more.
Selector lever : “L” POSITION Accelerator pedal position : 0.7/8 or more Vehicle speed : 10 km/h (6 MPH) or more
4. Stop the vehicle.
5. Check the first trip DTC.
Is “P1739” detected? YES >> Go to TM-442, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis Procedure
1.CHECK INTERMITTENT INCIDENT
Refer to GI-42, "Intermittent Incident".
Is the inspection result normal? YES >> Replace the transaxle assembly. Refer to TM-508, "Removal and Installation".
NO >> Repair or replace the malfunctioning parts.
