Nissan Juke Service and Repair Manual : P0089 fuel pump

DTC Logic

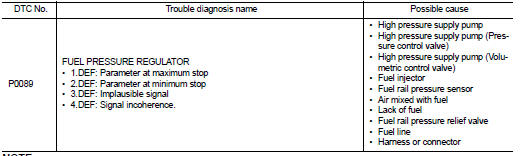

DTC DETECTION LOGIC

NOTE:


NOTE

:
• Conditions for applying the diagnostic procedure to the stored DTCs: The DTC becomes present during the first 30 seconds after the engine starts.

• In low ambient temperature conditions, diagnostic cannot make difference between a normal long engine start and abnormal long engine start. So, DTC must be take in account only if customer complains about too long or impossible engine start not only in cold conditions but also and especially in warm conditions. If customer complains only in cold conditions, root cause of the problem could elsewhere like low battery level, bad fuel specification (too viscous fuel). This DTC could appear after fuel filter too.

• Special notes:
Starting and engine operation difficult or impossible.

Diagnosis Procedure

1.CHECK LOW PRESSURE FUEL SUPPLY SYSTEM

Refer to EC-867, "Work Procedure (TEST 1: Low Pressure Fuel Supply System Check)".

Is the inspection result normal? OK >> GO TO 2.

NG >> Repair or replace.

2.CHECK INTERNAL FUEL TRANSFER PUMP

Refer to EC-868, "Work Procedure (TEST 2: Internal Fuel Transfer Pump Check)".

Is the inspection result normal? OK >> GO TO 3.

NG >> Repair or replace.

3.CHECK HIGH PRESSURE SUPPLY PUMP (PRESSURE CONTROL VALVE)

Refer to EC-868, "Work Procedure [TEST 3: High Pressure Supply Pump (Pressure Control Valve) Check]".

Is the inspection result normal? OK >> GO TO 4.

NG >> Repair or replace.

4.CHECK HIGH PRESSURE SUPPLY PUMP (VOLUMETRIC CONTROL VALVE)

Refer to EC-869, "Work Procedure [TEST 4: High Pressure Supply Pump (Volumetric Control Valve) Check]".

Is the inspection result normal? OK >> GO TO 5.

NG >> Repair or replace.

5.CHECK RAIL HIGH PRESSURE REGULATION

Refer to EC-871, "Work Procedure (TEST 5: Rail High Pressure Regulation Check)".

Is the inspection result normal? OK >> GO TO 6.

NG >> Repair or replace.

6.CHECK INTERMITTENT INCIDENT

Refer to GI-42, "Intermittent Incident", ???INCIDENT SIMULATION TESTS??? and ???GROUND INSPECTION???.

Is the inspection result normal? YES >> INSPECTIO END.

NO >> Repair or replace.

    P0087 fuel pump
    DTC Logic DTC DETECTION LOGIC NOTE: • Conditions for applying the diagnostic procedure to the stored DTCs: The DTC becomes present during the first 30 seconds after the engine starts. • In low ...

    P0090 fuel pump
    DTC Logic DTC DETECTION LOGIC Diagnosis Procedure 1.CHECK HIGH PRESSURE SUPPLY PUMP (PRESSURE CONTROL VALVE) POWER SUPPLY 1. Turn ignition switch OFF. 2. Disconnect high pressure supply pump (p ...
