Nissan Juke Owners Manual : Intelligent Key

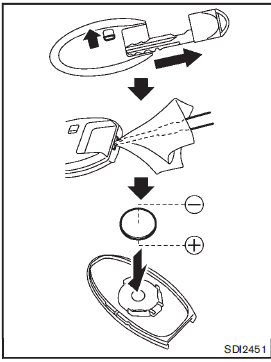

Replace the battery in the Intelligent Key as follows: 1. Remove the mechanical


Replace the battery in the Intelligent Key as follows: 1. Remove the mechanical key from the Intelligent Key.

2. Insert a small screwdriver into the slit of the corner and twist it to separate the upper part from the lower part. Use a cloth to protect the casing.

3. Replace the battery with a new one.

Recommended battery:

CR2025 or equivalent

• Do not touch the internal circuit and electric terminals as doing so could cause a malfunction.

• Hold the battery by the edges. Holding the battery across the contact points will seriously deplete the storage capacity.

• Make sure that the + side faces the bottom of the case.

4. Align the tips of the upper and lower parts 1 , and then push them together2


4. Align the tips of the upper and lower parts 1 , and then push them together2 until it is securely closed.

5. Operate the buttons to check its operation.

See a NISSAN dealer if you need any assistance for replacement.

FCC Notice:

For USA:

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

For Canada:

This device complies with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

    Keyfob
    Replace the battery in the keyfob as follows: 1. Remove the screw. 2. Insert a small screwdriver into the slit of the corner and twist it to separate the upper part from the lower part. Use a clot ...
