Nissan Juke Service and Repair Manual : Engine control system symptoms

Symptom Table

SYSTEM — BASIC ENGINE CONTROL SYSTEM

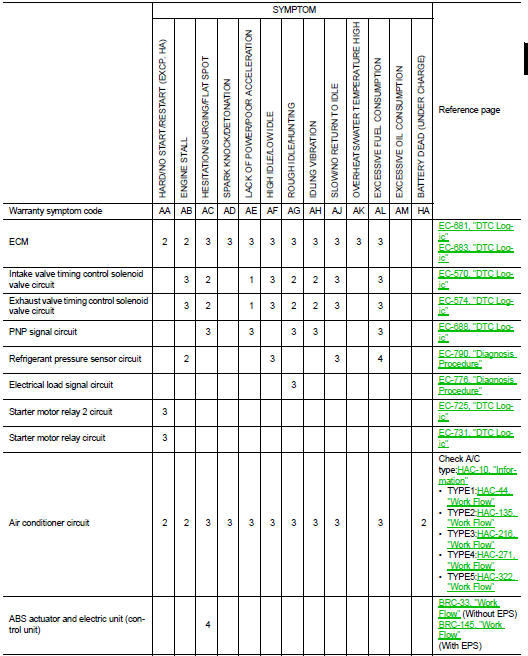

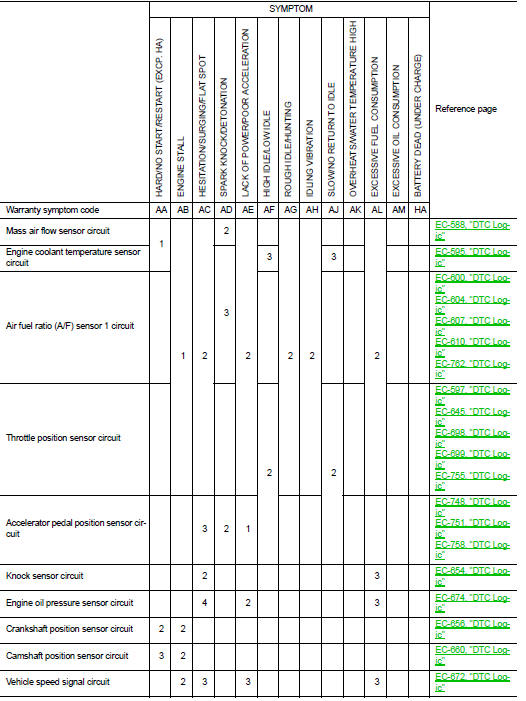

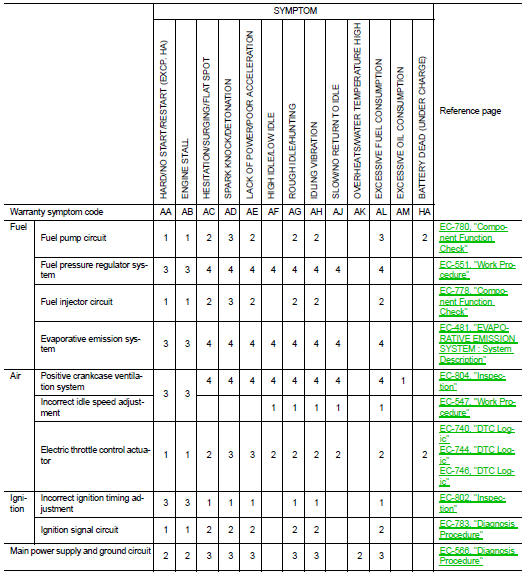

1 - 6: The numbers refer to the order of inspection.


1 - 6: The numbers refer to the order of inspection.

(continued on next table)

SYSTEM — ENGINE MECHANICAL & OTHER

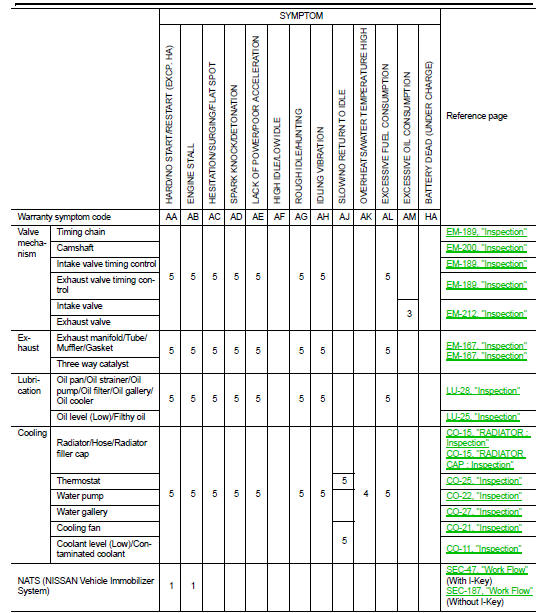

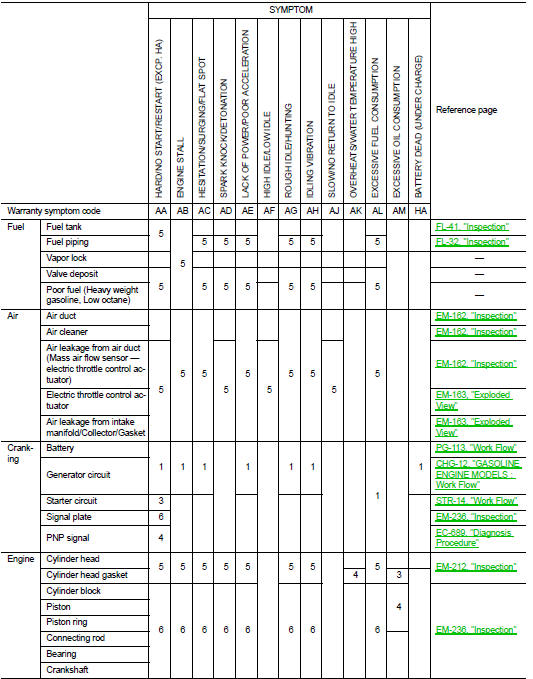

1 - 6: The numbers refer to the order of inspection


1 - 6: The numbers refer to the order of inspection
