Nissan Juke Service and Repair Manual : Body maintenance

Locks, hinges and hood latch

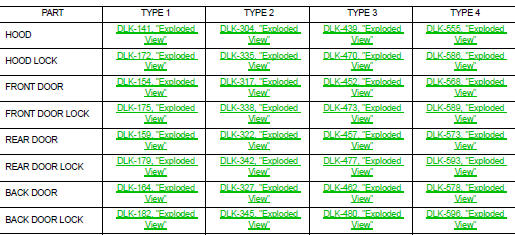

LOCKS, HINGES AND HOOD LATCH : Lubr

Seat belt, buckles, retractors, anchors and adjusters


Seat belt, buckles, retractors, anchors and adjusters

SEAT BELT, BUCKLES, RETRACTORS, ANCHORS AND ADJUSTERS : Inspection

For front seat belt illustration. Refer to SB-4, "Exploded View".

For rear seat belt illustration. Refer to SB-10, "Exploded View".

CAUTION:
• After any collision, inspect all seat belt assemblies, including retractors and other attached hardwares (I.e. anchor bolt, guide rail set). Nissan recommends to replace all seat belt assemblies in use during a collision, unless not damaged and properly operating after minor collision.

Also inspect seat belt assemblies not in use during a collision, and replace if damaged or improperly operating.

Seat belt pre-tensioner should be replaced even if the seat belts are not in use during a frontal collision where the driver and passenger air bags are deployed.

• If any component of seat belt assembly is questionable, do not repair.

Replace as seat belt assembly.

• If webbing is cut, frayed, or damaged, replace belt assembly.

• Never oil tongue and buckle.

• Use a genuine NISSAN seat belt assembly.

For details, refer to SB-7, "SEAT BELT RETRACTOR : Inspection", SB-13, "SEAT BELT RETRACTOR : Inspection" in SB section.

• Check anchors for loose mounting • Check belts for damage • Check retractor for smooth operation • Check function of buckles and tongues when buckled and released

Body corrosion

BODY CORROSION : Checking Body Corrosion

Visually check body panels for collision damage (scratches, chipping, rubbing, etc.) or damage to the anti-corrosion materials. In particular, check the following locations.

HEMMED PANELS

Hood front end, door lower end, trunk lid rear end, etc.

PANEL JOINT

Side sill of rear fender and center pillar, rear wheel housing of rear fender, around strut tower in engine compartment, etc.

PANEL EDGE

Trunk lid opening, sunroof opening, fender wheel-arch flange, fuel filler lid flange, around holes in panel, etc.

PARTS CONTACT

Waist moulding, windshield moulding, bumper, etc.

PROTECTORS

Damage or condition of mudguard, fender protector, chipping protector, etc.

ANTI-CORROSION MATERIALS

Damage or separation of anti-corrosion materials under the body.

DRAIN HOLES

Condition of drain holes at door and side sill. When repairing corroded areas, refer to the Corrosion Repair Manual.
