Nissan Juke Service and Repair Manual : Door mirror remote control switch

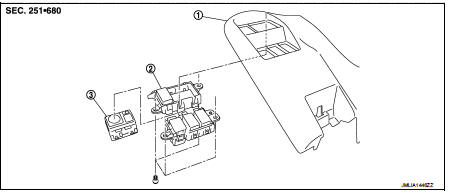

Exploded View

1. Instrument lower panel


1. Instrument lower panel 2. Switch bracket
3. Door mirror remote control switch

Removal and Installation

REMOVAL

1. Remove the instrument lower panel. Refer to IP-13, "Removal and Installation".

2. Remove mounting screws and remove switch bracket from instrument lower panel.

3. Remove door mirror remote control switch (1) from switch bracket (2) using flat-bladed screwdriver (A).

: Pawl


INSTALLATION


INSTALLATION

Install in the reverse order of removal.
