Nissan Juke Service and Repair Manual : Diagnosis system (BCM) (without intelligent key system)

Nissan Juke Service and Repair Manual / Exterior Lighting System Halogen type / System description / Diagnosis system (BCM) (without intelligent key system)

Common item

COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

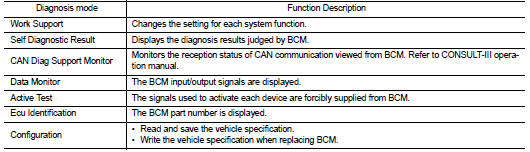

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with BCM.

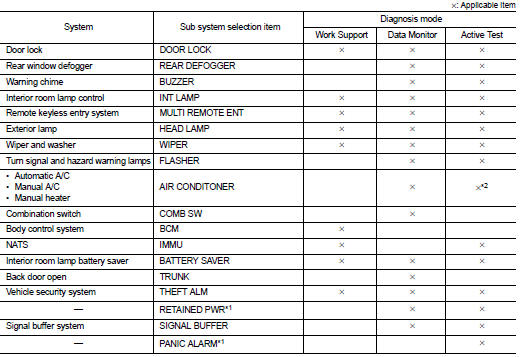

SYSTEM APPLICATION


SYSTEM APPLICATION

BCM can perform the following functions for each system.

NOTE

:
It can perform the diagnosis modes except the following for all sub system selection items.

• *1: This item is displayed, but is not used.


• *1: This item is displayed, but is not used.

• *2: For models with automatic A/C, this mode is not used.

Headlamp

HEADLAMP : CONSULT-III Function (BCM - HEAD LAMP)

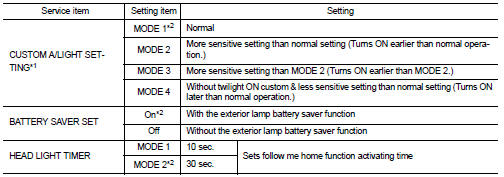

WORK SUPPORT

*1: For models is without auto light system, this item is not displayed.


*1: For models is without auto light system, this item is not displayed.

*2: Factory setting

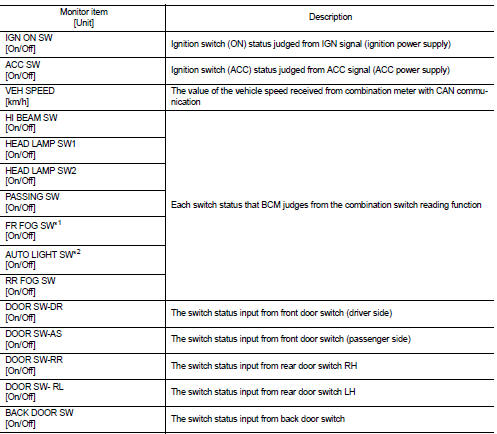

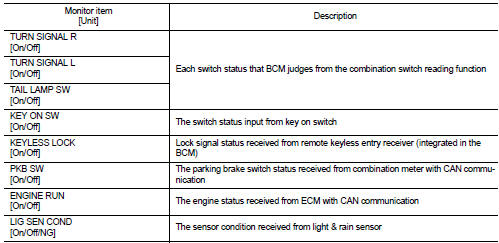

DATA MONITOR


*1: Only models with front fog lamp can be monitored.


*1: Only models with front fog lamp can be monitored.

*2: Only models with auto light system can be monitored.

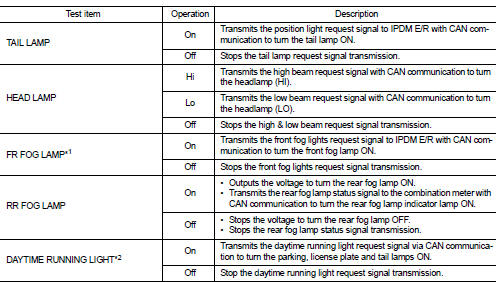

ACTIVE TEST

*1: For models without front fog lamp, this item is displayed but active test


*1: For models without front fog lamp, this item is displayed but active test is not operated.*1: For models without front fog lamp, this item is displayed but active test is not operated.

*2: For models without daytime running light system, this item is not displayed.

*2: For models without daytime running light system, this item is not displayed.

Flasher

FLASHER : CONSULT-III Function (BCM - FLASHER)

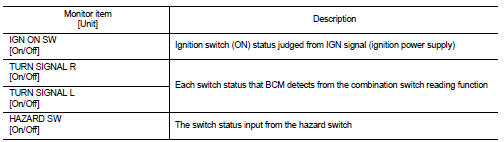

DATA MONITOR

ACTIVE TEST


ACTIVE TEST
