Nissan Juke Service and Repair Manual : Diagnosis system (BCM) (with intelligent key system)

Description

Air conditioning system performs self-diagnosis, operation check, function diagnosis, and various settings using diagnosis function of each control unit.

Common item : consult-III Function (BCM - COMMON ITEM)


Common item : consult-III Function (BCM - COMMON ITEM)

APPLICATION ITEM

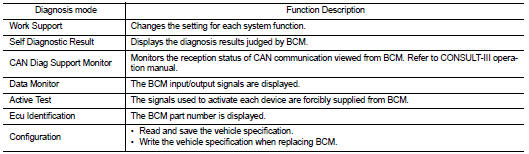

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION


SYSTEM APPLICATION

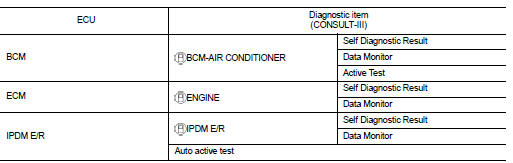

BCM can perform the following functions for each system.

NOTE

:
It can perform the diagnosis modes except the following for all sub system selection items.


NOTE:


NOTE

:
*1: This item is displayed, but not used.

*2: For models with automatic A/C, this diagnosis mode is not used.

FREEZE FRAME DATA (FFD)

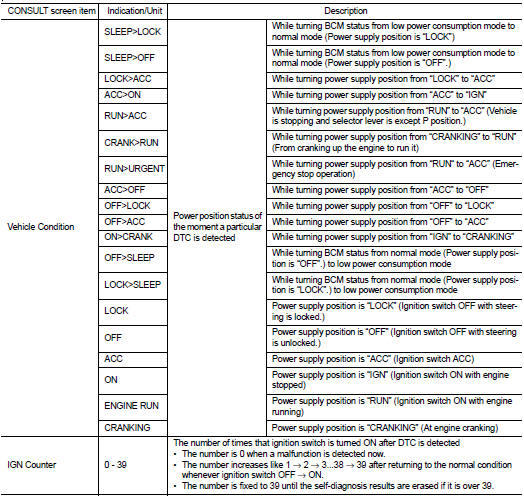

The BCM records the following vehicle condition at the time a particular DTC is detected, and displays on CONSULT-III.


Air conditioner : consult-III Function (BCM - AIR CONDITIONER) (Manual A/


Air conditioner : consult-III Function (BCM - AIR CONDITIONER) (Manual A/ C 2WD Models)

DATA MONITOR

Display item list

ACTIVE TEST


ACTIVE TEST
