Nissan Juke Service and Repair Manual : Wheel Alignment

HR16DE, K9K

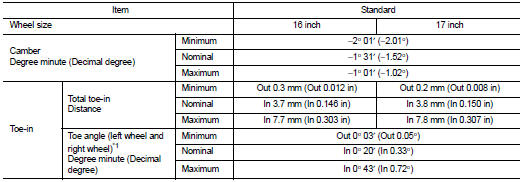

Measure value under unladen*2 conditions.


Measure value under unladen*2 conditions.

*1: Since adjustment mechanism is not included, the value of the left and right wheels (both wheels) must be used as the standard value.

*2: Fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools and mats are in designated positions.

MR16DDT

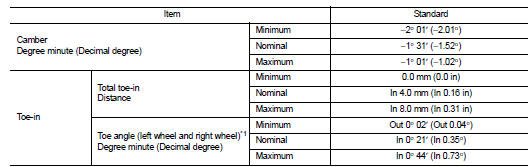

Measure value under unladen*2 conditions.


Measure value under unladen*2 conditions.

*1: Since adjustment mechanism is not included, the value of the left and right wheels (both wheels) must be used as the standard value.

*2: Fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools and mats are in designated positions.

    Wheelarch Height
    Measure value under unladen* conditions. *: Fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools and mats are in designated positions. ...
