Nissan Juke Service and Repair Manual : Washer switch

Component Inspection

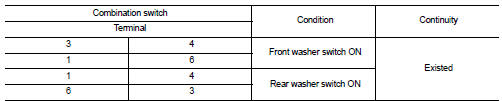

1.CHECK WASHER SWITCH

1. Turn ignition switch OFF.

2. Disconnect combination switch connector.

3. Check continuity between the combination switch terminals.

A : Terminal 4
B : Terminal 6
C : Terminal 3
D : Terminal 1


Is the inspection result normal?


Is the inspection result normal? YES >> INSPECTION END

NO >> Replace combination switch (Wiper and washer switch).
