Nissan Juke Service and Repair Manual : Vehicle information
Identification information
Japan production models
JAPAN PRODUCTION MODELS : Model Variation

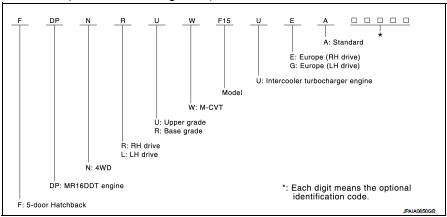

Model variation code (Prefix and suffix designations)
JAPAN PRODUCTION MODELS : Information About Identification or Model Code
IDENTIFICATION NUMBER
1. Air conditioner specification label 2. Vehicle identification plate 3.Vehicle identification number (Chassis number)
VEHICLE Identification Number ARRANGEMENT

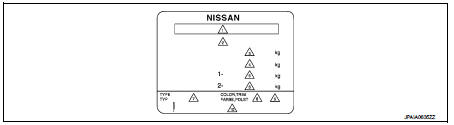

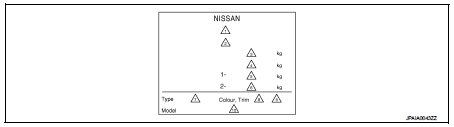

IDENTIFICATION PLATE
1. Type approval number (Models
with WVTA)
Blank (Models without WVTA)
2. Vehicle identification number (Chassis
number)
3. Gross vehicle weight
4. Gross combination weight
Gross vehicle weight
+ Gross trailing capacity (Weight)
5. Gross axle weight (Front)
6. Gross axle weight (Rear)
7. Vehicle type
8. Body color code
9. Trim color code
10. Model variation code
ENGINE SERIAL NUMBER
MR Engine
: Vehicle front
AUTOMATIC TRANSAXLE NUMBER
CVT Unit (RE0F10B)
: Vehicle front
JAPAN PRODUCTION MODELS : Dimensions
JAPAN PRODUCTION MODELS : Wheels & Tires
Europe production models

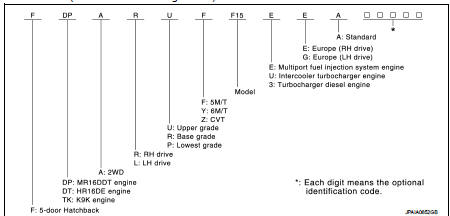

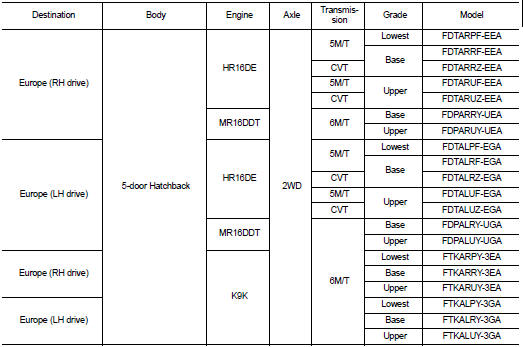

EUROPE PRODUCTION MODELS : Model Variation
Model variation code (Prefix and suffix designations)
EUROPE PRODUCTION MODELS : Information About Identification or Model Code

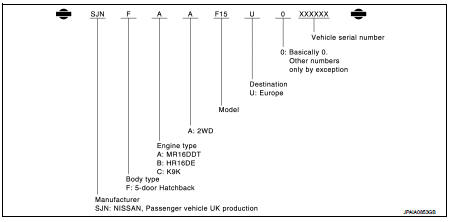

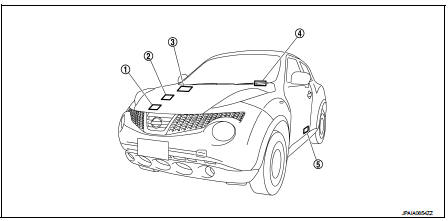

IDENTIFICATION NUMBER

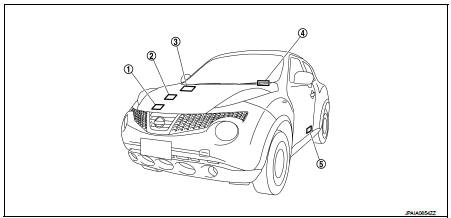

1. Air conditioner specification label
2. Vehicle identification plate
3.Vehicle identification number
(Chassis number)
4. Vehicle identification number plate
5. Tire placard

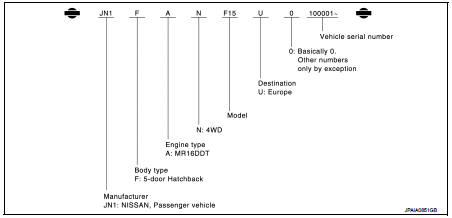

VEHICLE Identification Number ARRANGEMENT
IDENTIFICATION PLATE
1. Type approval number (Models
with WVTA)
Blank (Models without WVTA)
2. Vehicle identification number (Chassis
number)
3. Gross vehicle weight
4. Gross combination weight
Gross vehicle weight
+ Gross trailing capacity (Weight)
5. Gross axle weight (Front)
6. Gross axle weight (Rear)
7. Vehicle type
8. Body color code
9. Trim color code
10. Model variation code
ENGINE SERIAL NUMBER
HR and MR Engine
: Vehicle front
K9K Engine
Identification is engraved on the cylinder block which carries:
• A: Engine type
• B: Engine type approval letter
• D: Renault code
• E: Engine suffix
• F: Engine fabrication number
• G: Engine assembly plant
AUTOMATIC TRANSAXLE NUMBER
CVT Unit (RE0F11A)
: Vehicle front
MANUAL TRANSAXLE NUMBER
5M/T
1 : Serial number (bottom side of trans axle)
: Vehicle front
6M/T
: Vehicle front

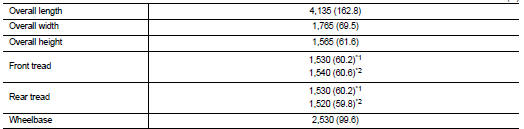

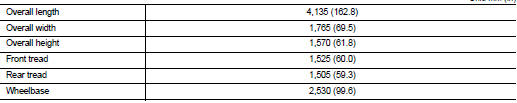

EUROPE PRODUCTION MODELS : Dimensions
*1: 205/60R16 model
*2: 215/55R17 model

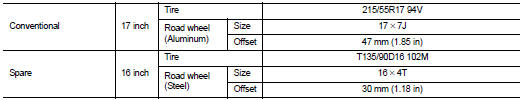

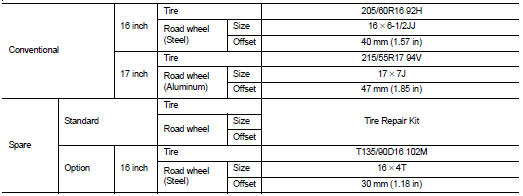

EUROPE PRODUCTION MODELS : Wheels & Tires
Tightening Torque Table (New Standard Included)
CAUTION:
• The special parts are excluded.
• The bolts/nuts in these tables have a strength (discrimination) number/symbol
assigned to the head
or the like. As to the relation between the strengt ...
