Nissan Juke Owners Manual : Troubleshooting guide

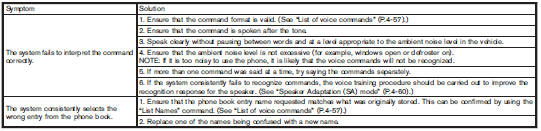

The system should respond correctly to all voice commands without difficulty. If problems are encountered, try the following solutions.
Where the solutions are listed by number, try each solution in turn, starting with number 1, until the problem is resolved.
Speaker Adaptation (SA) mode
Speaker Adaptation allows up to two out-of dialect users to train the system
to improve recognition accuracy. By repeating a number of commands, the users can
create a voice model of their own voi ...
Other materials:
A/C unit assembly
Exploded View (Automatic Air Conditioning)
REMOVAL
LHD models (4WD)
1. A/C unit assembly
2. Drain hose
3. Steering member
4. Instrument stay
: Clip
: N·m (kg-m, ft-lb)
DISASSEMBLY
LHD models (4WD)
1. Ventilator seal
2. Defroster seal
3. Upper attachment case
4. Sub defroster do ...
ABS actuator and electric unit (control unit)
Exploded View
LHD
MR16DDT (2WD), HR16DE
1. ABS actuator and electric unit (control
unit)
2. ABS actuator and electric unit (control
unit) harness connector
3. Bracket
A. To front LH caliper
B. To rear RH caliper
C. To rear LH caliper
D. To front RH caliper
E. To master cylinder seco ...
Towing recommended by NISSAN
Two-Wheel Drive (2WD) models
NISSAN recommends that your vehicle be towed with the driving (front) wheels
off the ground or place the vehicle on a flat bed truck as illustrated.
CAUTION
• Never tow CVT models with the front wheels on the ground or four wheels
on the ground (forward or ...
