Nissan Juke Service and Repair Manual : Wiring diagram

Security control system

LHD

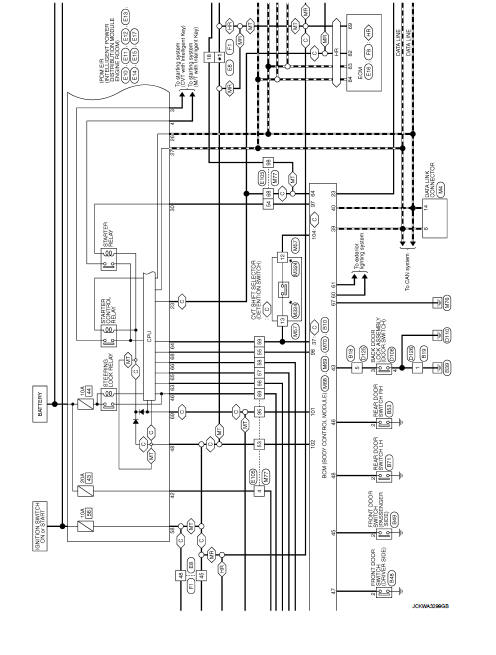

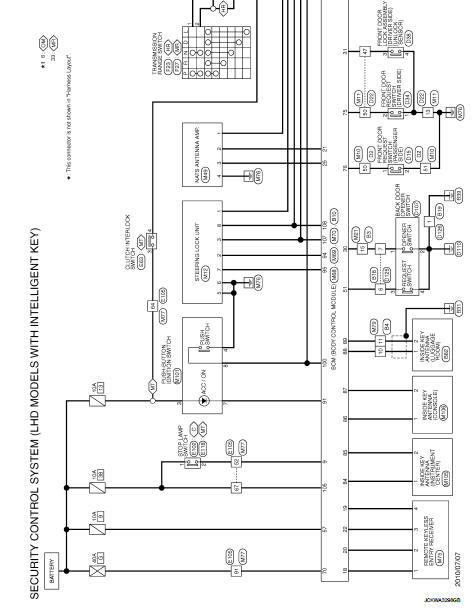

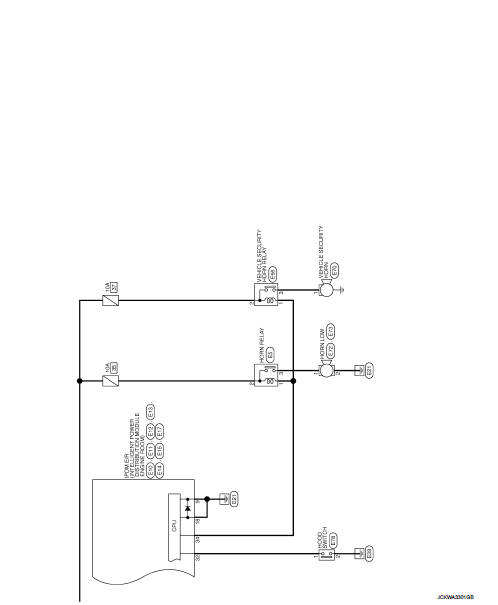

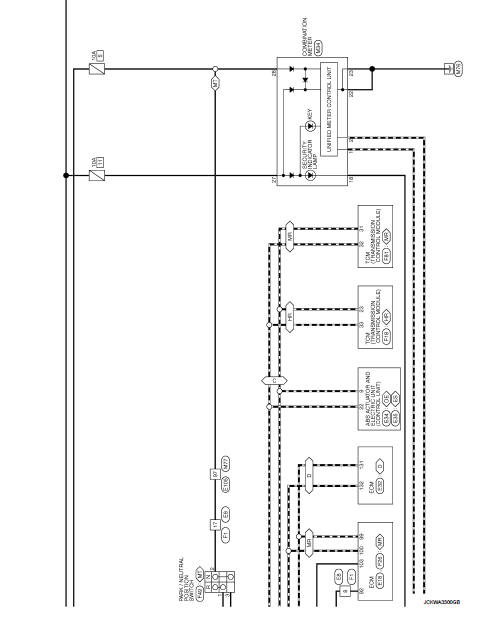

LHD : Wiring Diagram

For connector terminal arrangements, harness layouts, and alphabets in a(option abbreviation; if not
(option abbreviation; if not described in wiring diagram), refer to GI-12, "Connector Information/Explanation of Option Abbreviation".




RHD


RHD

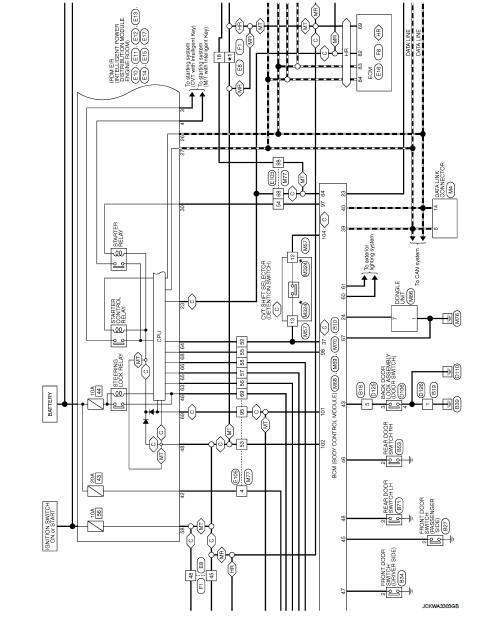

RHD : Wiring Diagram

For connector terminal arrangements, harness layouts, and alphabets in a described in wiring diagram), refer to GI-12, "Connector Information/Explanation(option abbreviation; if not
described in wiring diagram), refer to GI-12, "Connector Information/Explanation of Option Abbreviation".
