Nissan Juke Service and Repair Manual : Symptom diagnosis

CVT CONTROL SYSTEM

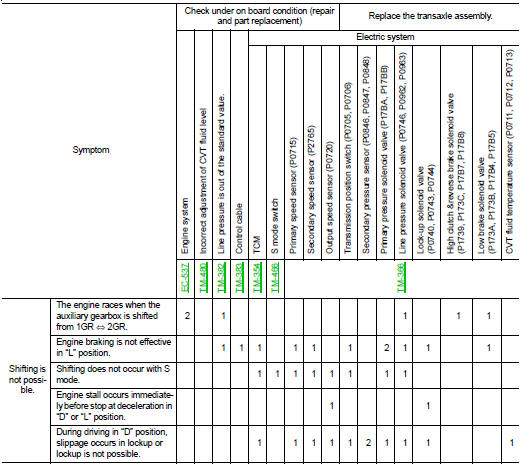

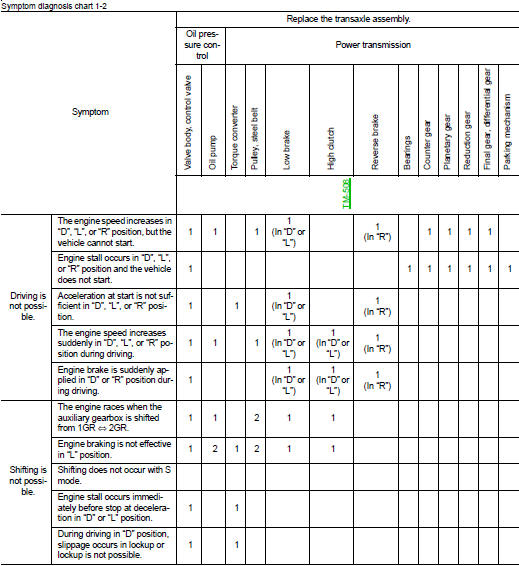

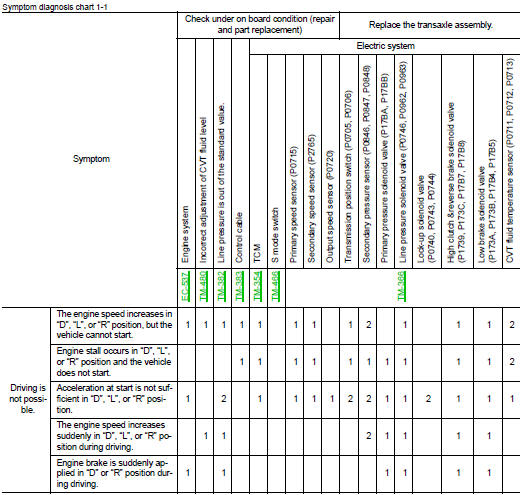

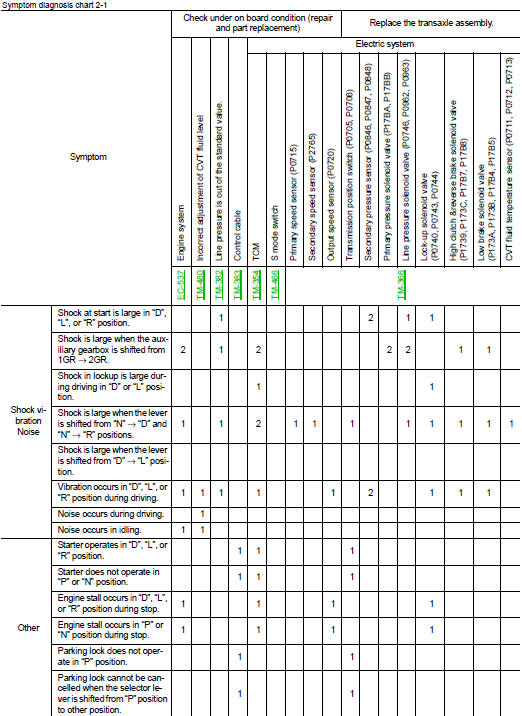

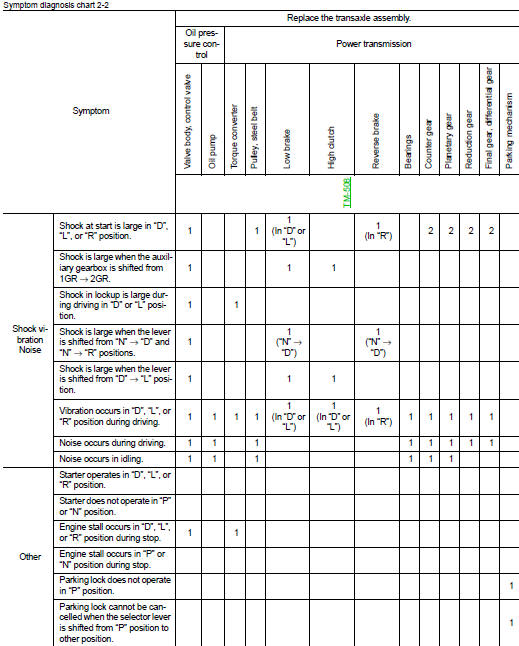

Symptom Table

The diagnosis item number indicates the order of check. Start checking in the order from 1.





Periodic maintenance


    Shift lock system
    Component Function Check 1.CHECK SHIFT LOCK OPERATION (PART 1) 1. Turn ignition switch ON. 2. Shift the selector lever to P position. 3. Attempt to shift the selector lever to any other than pos ...

    Periodic maintenance
    CVT FLUID Inspection FLUID LEAKAGE Check transaxle surrounding area (oil seal and plug etc.)for fluid leakage. If anything is found, repair or replace damaged parts and adjust CVT fluid leve ...
