Nissan Juke Service and Repair Manual : P0776 pressure control solenoid B

Description

The secondary pressure solenoid valve regulates the secondary pressure to suit the driving condition in response to a signal sent from the TCM.

DTC Logic

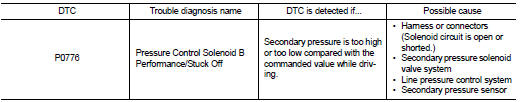

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE


DTC CONFIRMATION PROCEDURE

CAUTION:
Always drive vehicle at a safe speed.

NOTE:

If “DTC CONFIRMATION PROCEDURE” has been previously performed, always turn ignition switch OFF and wait at least 10 seconds before performing the next test.

After the repair, perform the following procedure to confirm the malfunction is eliminated.

1.CHECK DTC DETECTION

1. Turn ignition switch ON.With CONSULT-III


1. Turn ignition switch ON.

2. Select “DATA MONITOR” in “TRANSMISSION”.

3. Start engine and maintain the following conditions for at least 30 consecutive seconds.

ATF TEMP SEN : 1.0 − 2.0 V ACC PEDAL OPEN : More than 1.0/8 RANGE : “D” position
VEHICLE SPEED : 10 km/h (6 MPH) More than Driving location : Driving the vehicle uphill (increased engine load) will help maintain the driving conditions required for this test.

Follow the procedure “With CONSULT-III”.With GST


Follow the procedure “With CONSULT-III”.

Is “P0776” detected? YES >> Go to TM-223, "Diagnosis Procedure".

NO >> Check intermittent incident. Refer to GI-42, "Intermittent Incident".

Diagnosis Procedure

1.CHECK LINE PRESSURE

Perform line pressure test. Refer to TM-188, "Inspection and Judgment".

Is the inspection result normal? YES >> GO TO 2.

NO >> Repair or replace damaged parts. Refer to TM-188, "Inspection and Judgment".

2.CHECK SECONDARY PRESSURE SOLENOID VALVE

Check secondary pressure solenoid valve. Refer to TM-226, "Component Inspection".

Is the inspection result normal? YES >> GO TO 3.

NO >> Repair or replace damaged parts.

3.CHECK LINE PRESSURE SOLENOID VALVE

Check line pressure solenoid valve. Refer to TM-220, "Component Inspection".

Is the inspection result normal? YES >> GO TO 4.

NO >> Repair or replace damaged parts.

4.CHECK SECONDARY PRESSURE SENSOR SYSTEM

Check secondary pressure sensor system. Refer to TM-230, "DTC Logic".

Is the inspection result normal? YES >> GO TO 5.

NO >> Repair or replace damaged parts.

5.CHECK TCM

Check TCM input/output signals. Refer to TM-164, "Reference Value".

Is the inspection result normal? YES >> Check intermittent incident. Refer to GI-42, "Intermittent Incident".

NO >> Replace the TCM. Refer to TM-280, "Removal and Installation".
