Nissan Juke Service and Repair Manual : Noise, vibration and harshness (NVH) troubleshooting

Nissan Juke Service and Repair Manual / Driveline transfer: TY21B / Symptom diagnosis / Noise, vibration and harshness (NVH) troubleshooting

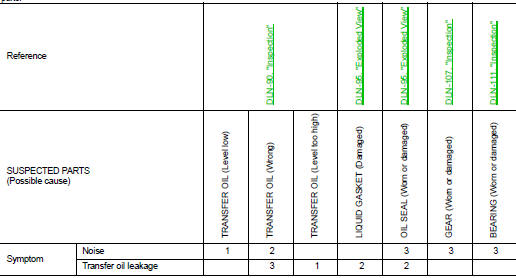

NVH Troubleshooting Chart

Use the chart below to find the cause of the symptom. The numbers indicate the order of the inspection. If necessary, repair or replace these parts.
