Nissan Leaf 2018-2025 (ZE1) Owner's Manual : Motor compartment check locations

Nissan Leaf 2018-2025 (ZE1) Owner's Manual / Do-it yourself / Motor compartment check locations

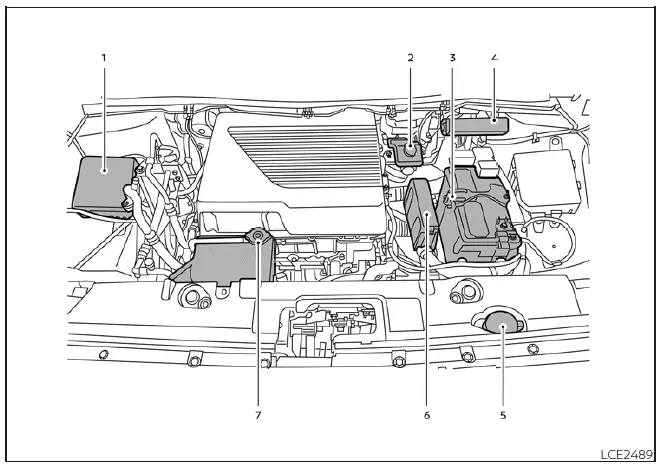

Overview of the Nissan Leaf motor compartment showing key maintenance check points and fluid reservoirs

  1. Fuse/Fusible link holder
  2. Brake fluid reservoir
  3. 12-volt battery
  4. Fuse holder
  5. Windshield-washer fluid reservoir
  6. Fuse/Fusible link holder
  7. Coolant reservoir cap

NOTE:

Depending on your specific model and trim level, your Nissan Leaf may not be equipped with a motor cover, which can make these inspection points more accessible.
