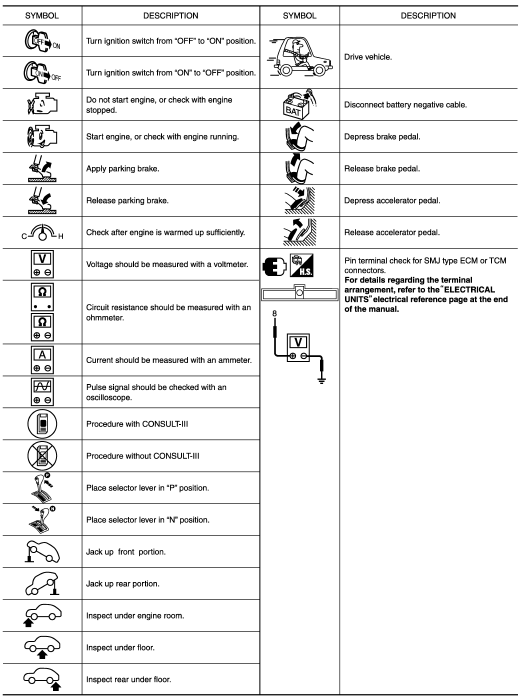

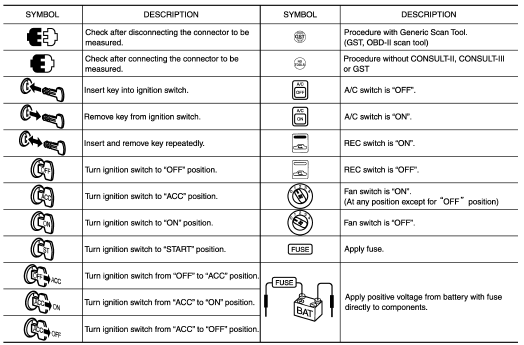

Nissan Juke Service and Repair Manual : Key to Symbols Signifying Measurements or Procedures


How to read wiring diagrams


    How to Follow Test Groups in Trouble Diagnosis
    1. Test group number and test group title Test group number and test group title are shown in the upper portion of each test group. 2. Work and diagnosis procedure Start to diagnose a pro ...
