Nissan Leaf 2018-2025 (ZE1) Owner's Manual : Instrument Panel

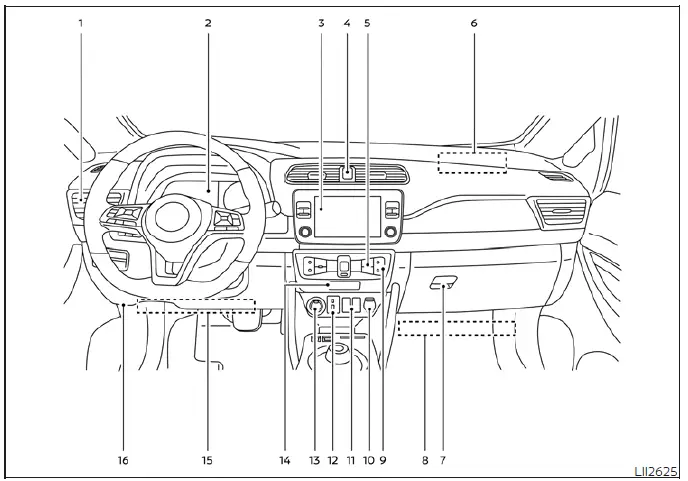

Detailed view of the Nissan Leaf instrument panel and dashboard controls

  1. Air ventilation vents
  2. Meters and gauges cluster:
    Vehicle information display
  3. Center multi-function control panel*
  4. Hazard warning flasher switch
  5. Rear window and outside mirror defroster switch (if so equipped)
  6. Front passenger supplemental air bag module
  7. Glove box storage compartment
  8. Front passenger supplemental knee airbag
  9. Heater and air conditioning climate controls
  10. Power accessory outlet
  11. Front heated seat switches (if so equipped)
  12. USB connection port*
  13. Push-button power switch
  14. Front passenger air bag status indicator light
  15. Driver's supplemental knee air bag module
  16. Hood release handle
    Cockpit
    TRIP RESET switch for twin trip odometer Instrument brightness control switch Headlight, fog light (if so equipped), and turn signal switch ...

    Meters and Gauges
    Vehicle information display: Digital clock Outside air temperature reading Li-ion battery available charge gauge Est ...
