Nissan Juke Service and Repair Manual : Engine cover

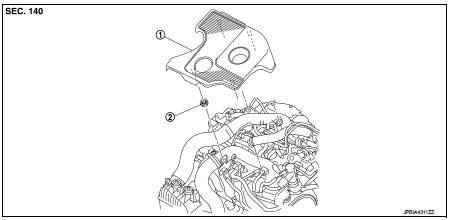

Exploded View

1. Engine cover


1. Engine cover
2. Mounting rubber

Removal and Installation

REMOVAL

Remove engine cover.

CAUTION:
Never damage or scratch engine cover when installing or removing.

INSTALLATION

Install in the reverse order of removal.
