Nissan Juke Service and Repair Manual : Drive belt auto tensioner and idler pulley

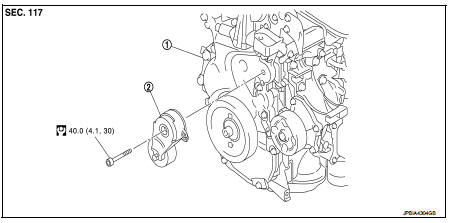

Exploded View

1. Front cover


1. Front cover
2. Drive belt auto-tensioner

Removal and Installation: N·m (kg-m, ft-lb)


Removal and Installation

Removal

1. Loosen mounting bolt and remove drive belt auto-tensioner.

Installation Install in the reverse order of removal.

CAUTION:
When installing drive belt auto-tensioner, be careful not to interfere with water pump pulley.
