Nissan Juke Service and Repair Manual : Diagnosis system (BCM) (with intelligent key system)

Nissan Juke Service and Repair Manual / Interior Lighting System / System description / Diagnosis system (BCM) (with intelligent key system)

Common item

COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

APPLICATION ITEM

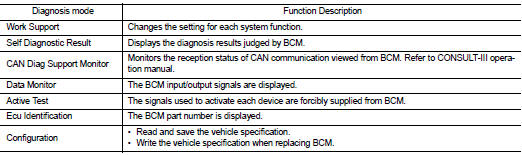

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION


SYSTEM APPLICATION

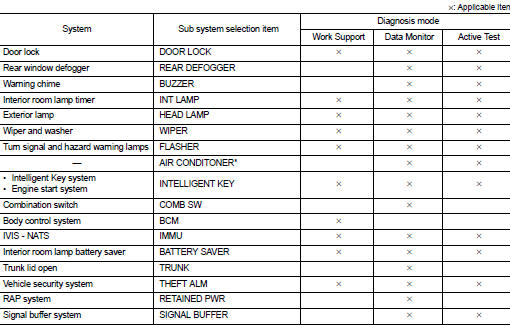

BCM can perform the following functions for each system.

NOTE

:
It can perform the diagnosis modes except the following for all sub system selection items.

*: This item is not used.


*: This item is not used.

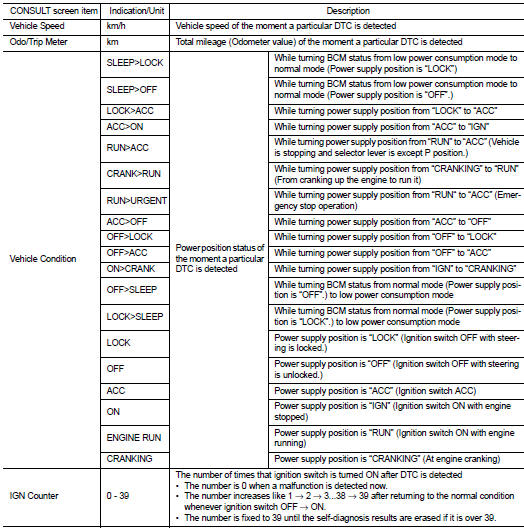

FREEZE FRAME DATA (FFD)

The BCM records the following vehicle condition at the time a particular DTC is detected, and displays on CONSULT-III.

INT lamp


INT lamp

INT LAMP : CONSULT-III Function (BCM - INT LAMP)

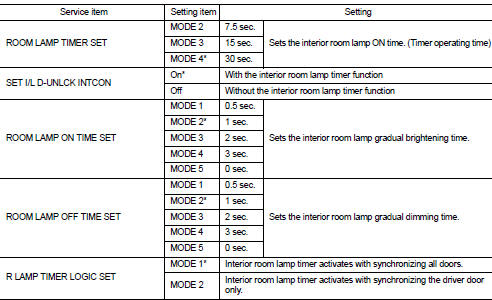

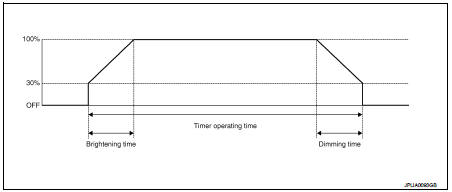

WORK SUPPORT


*: Factory setting


*: Factory setting

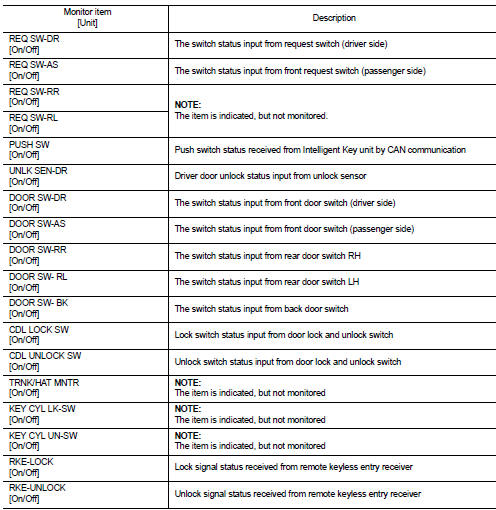

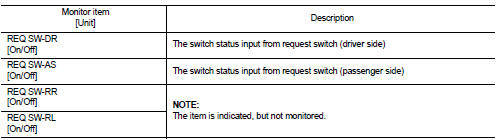

DATA MONITOR


ACTIVE TEST


ACTIVE TEST

Battery saver


Battery saver

BATTERY SAVER : CONSULT-III Function (BCM - BATTERY SAVER)

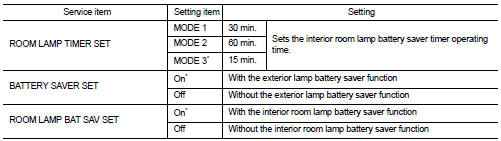

WORK SUPPORT

*:Factory setting


*:Factory setting

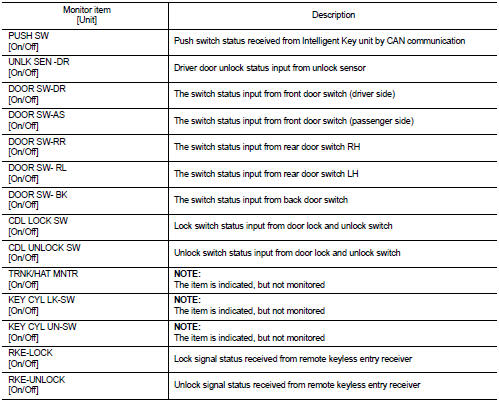

DATA MONITOR

ACTIVE TEST


ACTIVE TEST

*: Each lamp switch is in ON position


*: Each lamp switch is in ON position
