Nissan Juke Service and Repair Manual : Diagnosis system (BCM) (with intelligent key system)

Common item : consult-III Function (BCM - COMMON ITEM)

APPLICATION ITEM

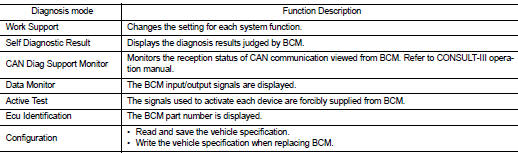

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION


SYSTEM APPLICATION

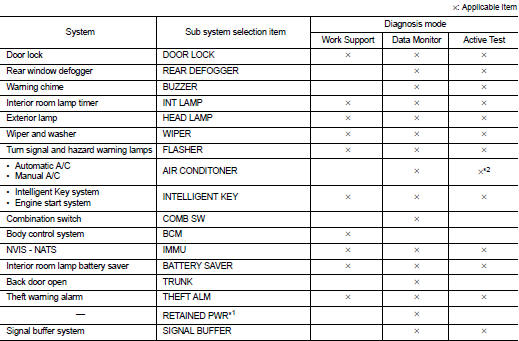

BCM can perform the following functions for each system.

NOTE

:
It can perform the diagnosis modes except the following for all sub system selection items.

NOTE:


NOTE

:
• *1: This item is displayed, but not used.

• *2: For models with automatic A/C, this diagnosis mode is not used.

FREEZE FRAME DATA (FFD)

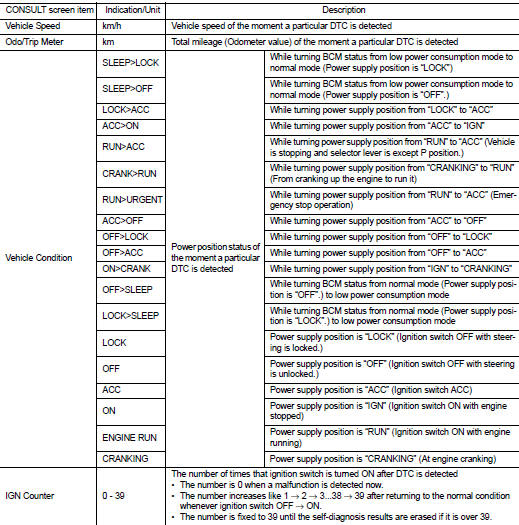

The BCM records the following vehicle condition at the time a particular DTC is detected, and displays on CONSULT-III.

Air conditioner : consult-III Function (BCM - AIR CONDITIONER) (Automatic


Air conditioner : consult-III Function (BCM - AIR CONDITIONER) (Automatic A/C 2WD Models)

DATA MONITOR

Display Item List
