Nissan Juke Service and Repair Manual : Diagnosis system (BCM)

Common item

COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

APPLICATION ITEM

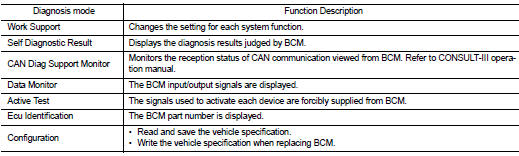

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION


SYSTEM APPLICATION

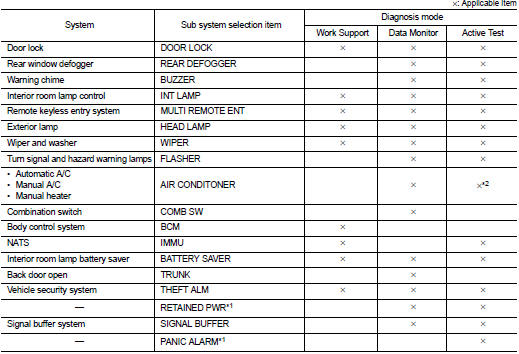

BCM can perform the following functions for each system.

NOTE

:
It can perform the diagnosis modes except the following for all sub system selection items.

• *1: This item is displayed, but is not used.


• *1: This item is displayed, but is not used.

• *2: For models with automatic A/C, this mode is not used.

DOOR LOCK

DOOR LOCK : CONSULT-III Function (BCM - DOOR LOCK) (With Super Lock)

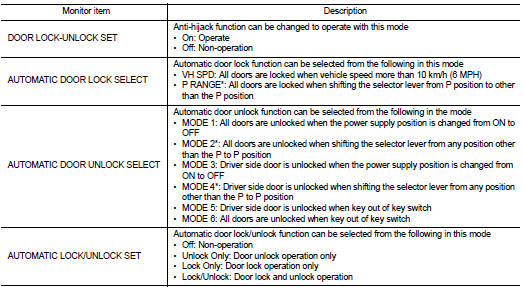

WORK SUPPORT

*: P range interlock door lock/unlock can be selected for M/T models, but


*: P range interlock door lock/unlock can be selected for M/T models, but automatic door lock/unlock function does not operate.

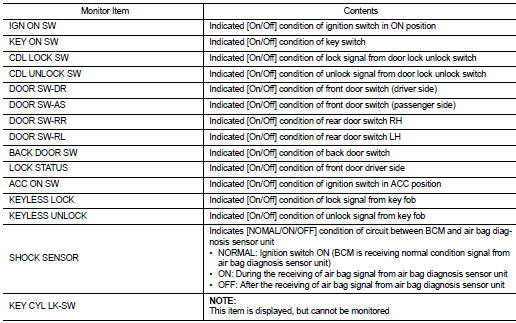

DATA MONITOR

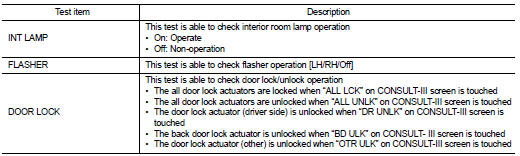

ACTIVE TEST


ACTIVE TEST

Multi remote ENT


Multi remote ENT

MULTI REMOTE ENT : CONSULT-III Function (BCM - MULTI REMOTE ENT) (With Super Lock)

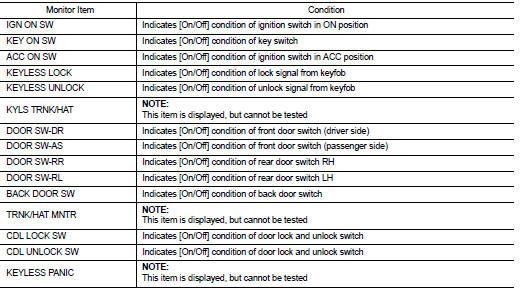

DATA MONITOR

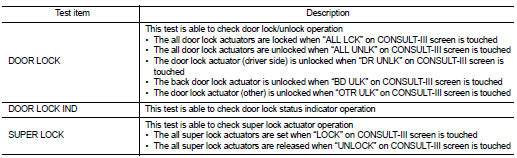

ACTIVE TEST


ACTIVE TEST

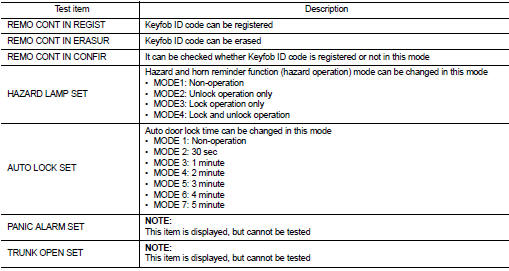

WORK SUPPORT


WORK SUPPORT

Trunk


Trunk

TRUNK : CONSULT-III Function (BCM - TRUNK) (With Super Lock)

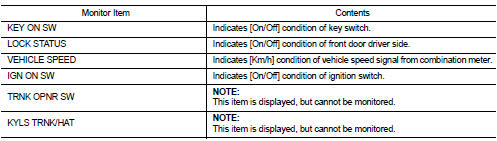

DATA MONITOR

ECU diagnosis information


    Back door opener system
    System Diagram System Description BACK DOOR OPENER OPERATION When back door opener switch is pressed, BCM operates back door opener actuator. NOTE: Back door opener actuator is not for lock ...

    ECU diagnosis information
    BCM List of ECU Reference ...
