Nissan Juke Service and Repair Manual : Cooling system

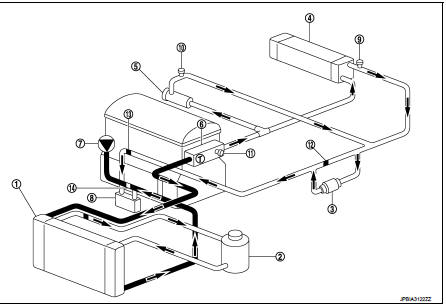

Cooling Circuit

1. Radiator


1. Radiator
2. Reservoir tank
3. Heating elements (Thermo plungers) 4. Heater core
5. Exhaust gas cooler
6. Thermostat
7. Water pump
8. Water-oil heat exchanger 9. Bleed screw
10. Bleed screw
11. Bleed screw
12. Choke
13. Choke
14. Choke

    Basic inspection
    Radiator Inspection Check radiator for mud or clogging. If necessary, clean radiator as follows. CAUTION: Be careful not to bend or damage the radiator fins. When radiator is cleaned withou ...
