Nissan Juke Service and Repair Manual : Connecting Rod Bearing

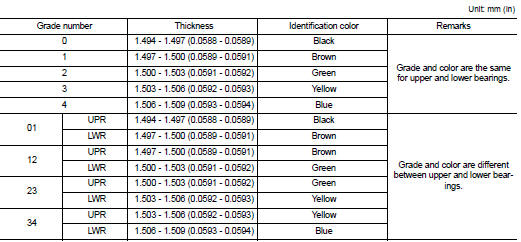

CONNECTING ROD BEARING GRADE TABLE

UNDERSIZE TABLE


UNDERSIZE TABLE

CONNECTING ROD BEARING OIL CLEARANCE


CONNECTING ROD BEARING OIL CLEARANCE
