Nissan Juke Service and Repair Manual : Component parts

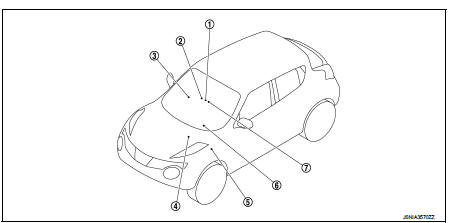

Component Parts Location

1. Parking brake switch


1. Parking brake switch 2. Seat belt buckle switch (passenger side)
3. Occupant detection unit (Under the passenger seat cushion pad)
4. ABS actuator and electric unit (control unit) Refer to BRC-97, "Component Parts Location" (with ESP).

Refer to BRC-9, "Component Parts Location" (without ESP).

5. BCM Refer to BCS-6, "BODY CONTROL SYSTEM : Component Parts Location" (with intelligent key system).

Refer to BCS-96, "BODY CONTROL SYSTEM : Component Parts Location" (without intelligent key system).

6. Combination meter
7. Seat belt buckle switch (driver side)

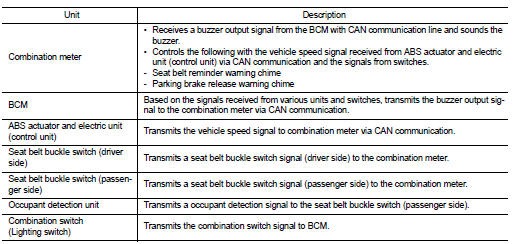

Component Description


Combination Meter


Combination Meter

The buzzer (1) for the warning chime system is integrated in the combination meter.

System


    System
    Warning chime system WARNING CHIME SYSTEM : System Diagram WARNING CHIME SYSTEM : System Description COMBINATION METER The combination meter sounds the alarm buzzer installed in the combination ...
