Nissan Juke Service and Repair Manual : Component parts

Starting system (with intelligent key) : Component Parts Location

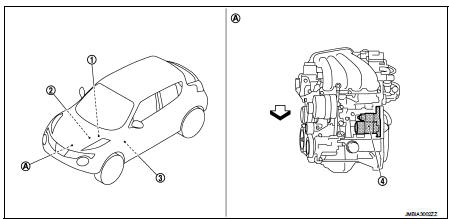

1. IPDM E/R


1. IPDM E/R Refer to PCS-5, "Component Parts Location".

2. Transmission range switch (CVT models) Refer to TM-131, "CVT CONTROL SYSTEM : Component Parts Location" (MR16DDT), TM-314, "CVT CONTROL SYSTEM : Component Parts Location" (HR16DE).

3. BCM Refer to BCS-6, "BODY CONTROL SYSTEM : Component Parts Location".

4. Starter motor

A. Engine

Starting system (with intelligent key) : Component Description:Vehicle front

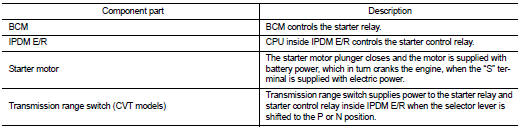

Starting system (with intelligent key) : Component Description

Starting system (without intelligent key) : Component Parts Location


Starting system (without intelligent key) : Component Parts Location

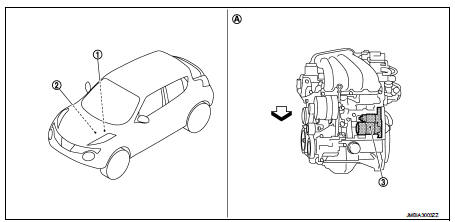

1. IPDM E/R


1. IPDM E/R Refer to PCS-37, "Component Parts Location".

2. Transmission range switch (CVT models) Refer to TM-131, "CVT CONTROL SYSTEM : Component Parts Location" (MR16DDT), TM-314, "CVT CONTROL SYSTEM : Component Parts Location" (HR16DE).

3. Starter motor

A. Engine

Starting system (without intelligent key) : Component Description:Vehicle front

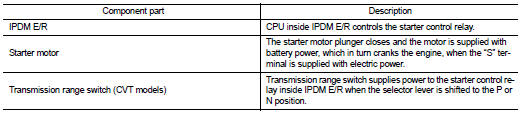

Starting system (without intelligent key) : Component Description

System


    System
    Starting system (with intelligent key) : System Diagram *1: M/T models *2: CVT models Starting system (with intelligent key) : System Description CVT MODELS • When selector lever is P or N, pow ...
