Nissan Juke Service and Repair Manual : B26EF steering lock relay

DTC Logic

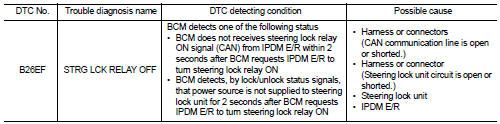

DTC DETECTION LOGIC

NOTE

:
• If DTC B26EF is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to BCS-83, "DTC Logic".

• If DTC B26EF is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer to BCS-84, "DTC Logic".

• If DTC B26EF is displayed with DTC B2612, first perform the trouble diagnosis for DTC B2612. Refer to SEC-102, "DTC Logic".

DTC CONFIRMATION PROCEDURE


DTC CONFIRMATION PROCEDURE

1.PERFORM DTC CONFIRMATION PROCEDURE

1. Press push-button ignition switch under the following conditions, and wait 2 seconds or more.

- Selector lever: In the P position.

- Brake pedal: Not depressed 2. Turn ignition switch OFF.

3. Press driver side door switch to lock steering and wait 2 seconds or more.

4. Check DTC in “Self Diagnostic Result” mode of “BCM” using CONSULT-III.

Is DTC detected? YES >> Go to SEC-117, "Diagnosis Procedure".

NO >> INSPECTION END

Diagnosis Procedure

1.CHECK DTC OF IPDM E/R

Check DTC in “Self Diagnostic Result” mode of “IPDM E/R” using CONSULT-III.

Is DTC detected? YES >> Perform the diagnosis procedure related to the detected DTC. Refer to PCS-25, "DTC Index".

NO >> GO TO 2.

2.CHECK STEERING LOCK UNIT POWER SUPPLY

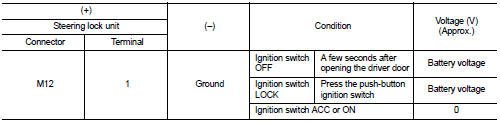

Check voltage between steering lock unit harness connector and ground.

NOTE:


NOTE:

Is the inspection normal?


Is the inspection normal? YES >> GO TO 3.

NO >> GO TO 4.

3.REPLACE STEERING LOCK UNIT

1. Replace steering lock unit.

2. Perform the service procedure for steering lock unit replacement. Refer to CONSULT-III Operation Manual NATS-IVIS/NVIS.

>> INSPECTION END

4.CHECK STEERING LOCK RELAY CIRCUIT

1. Disconnect IPDM E/R connector and steering lock unit connector.

2. Check continuity between IPDM E/R harness connector and steering lock unit harness connector.

3. Check continuity between IPDM E/R harness connector and ground.


3. Check continuity between IPDM E/R harness connector and ground.

Is the inspection result normal?


Is the inspection result normal? YES >> Replace IPDM E/R. Refer to PCS-34, "Removal and Installation".

NO >> Repair or replace harness.
