Nissan Leaf 2018-2025 (ZE1) Owner's Manual : Vehicle identification

Vehicle Identification Number (VIN) plate

Location of the VIN plate on the Nissan Leaf

The Vehicle Identification Number (VIN) plate is securely attached to your Nissan Leaf at the position indicated in the illustration. This unique 17-character identifier serves as the official fingerprint for your vehicle and is a mandatory requirement for all vehicle registration, insurance, and service documentation.

Vehicle identification number (chassis number)

Accessing the chassis VIN stamped on the Nissan Leaf body

The chassis-stamped vehicle identification number is located in the area shown. To access this number, simply remove the protective cover.

Traction motor serial number

Location of the traction motor serial number on the Nissan Leaf electric powertrain

The specific serial number for your electric traction motor is permanently stamped directly onto the motor housing at the location highlighted in the accompanying diagram.

F.M.V.S.S./C.M.V.S.S. Certification label

F.M.V.S.S./C.M.V.S.S. safety certification label on the Nissan Leaf

The Federal/Canadian Motor Vehicle Safety Standards (F.M.V.S.S./C.M.V.S.S.) certification label is affixed to your Nissan Leaf as shown. This label is a comprehensive source of essential vehicle data, including the Gross Vehicle Weight Rating (GVWR), Gross Axle Weight Rating (GAWR) for both front and rear axles, the specific month and year of manufacture, and the official Vehicle Identification Number (VIN). We encourage you to review this information periodically for your records.

Emission control information label

Emission control information label located under the Nissan Leaf hood

The emission control information label is conveniently attached to the underside of the hood, providing technical details regarding the vehicle's environmental compliance standards.

Tire and Loading Information label

Tire and Loading Information label on the driver's side pillar of the Nissan Leaf

Proper tire maintenance is vital for safety and efficiency. You can find the manufacturer-recommended cold tire pressure specifications on the Tire and Loading Information label, which is affixed to the driver's side center pillar for easy reference.

Air conditioner specification label

Air conditioner specification label under the hood of the Nissan Leaf

The air conditioner specification label is affixed to the underside of the hood, detailing the refrigerant type and system capacity requirements for your Nissan Leaf climate control system.

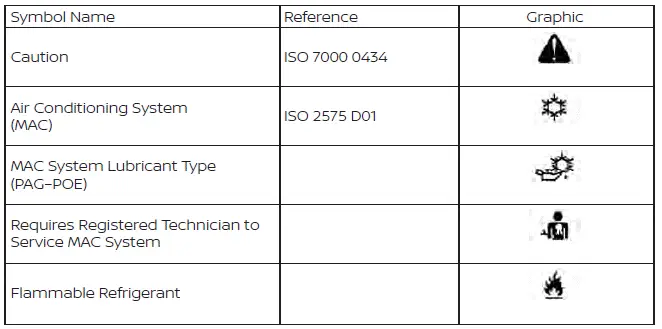

Explanation of safety and technical symbols on the Nissan Leaf air conditioner label
Air Conditioner Specification Label Symbols

Installing front license plate

Mounting points for the front license plate on the Nissan Leaf bumper

To ensure a perfectly aligned and professional installation, there are two distinct dimple marks on the front bumper fascia that indicate the precise location for each mounting screw.

To install the Front License Plate:

Align your license plate with the marked positions and use two 6mm self-tapping screws to securely attach the plate to the bumper fascia of your Nissan Leaf.

NOTE:

Please be aware that self-tapping screws are not included with the vehicle and must be acquired separately.

    Recommended fluids/lubricants and capacities
    The following values represent approximate capacities for your Nissan Leaf. Please note that actual refill volumes can vary slightly depending on environmental conditions and service methods. When per ...

    Vehicle loading information
    WARNING It is extremely dangerous to ride in the cargo area inside the vehicle. In the event of a collision, individuals positioned in these unsecured areas are significant ...
