Nissan Juke Service and Repair Manual : System

AUTO RETRACTABLE DOOR MIRORR FUNCTION

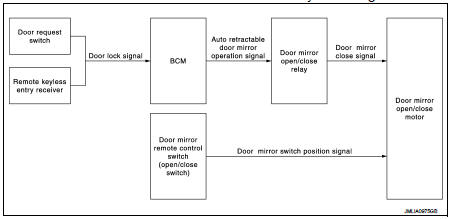

AUTO RETRACTABLE DOOR MIRORR FUNCTION : System Diagram

AUTO RETRACTABLE DOOR MIRORR FUNCTION : System Description


AUTO RETRACTABLE DOOR MIRORR FUNCTION : System Description

BCM retracts door mirror when door lock signal is received from Intelligent Key or door request switch.

OPERATION CONDITION

The system operates under the following conditions.

• Ignition switch: OFF
• Open/Close switch: AUTO

1. Press lock button of Intelligent Key or door request switch when the system is in operation condition.

2. Door mirror open/close relay turns ON for approximately 6 seconds. Door mirror is retracted.

NOTE

:
• Auto retractable door mirror system is not operated when BCM detects door lock signal from power window main switch of door key cylinder switch.

• ON/OFF of auto retractable door mirror system can be set on “WORK SUPPORT” of “INTELLIGENT KEY”of “BCM” using CONSULT-III. Refer to DLK-43, "INTELLIGENT KEY : CONSULT-III Function (BCM - INTELLIGENT KEY) (With Super Lock)" (With super lock) DLK-219, "INTELLIGENT KEY : CONSULT-III Function (BCM - INTELLIGENT KEY) (Without Super Lock)" (Without super lock).

    Component parts
    Component Parts Location 1. Door request switch (driver side) 2. Door mirror (driver side) 3. Remote keyless entry receiver Refer to DLK-21, "Component Parts Location" 4. Door mirr ...

    Diagnosis system (BCM)
    Common item COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM) APPLICATION ITEM CONSULT-III performs the following functions via CAN communication with BCM. SYSTEM APPLICATION BCM can perfo ...
