Nissan Juke Service and Repair Manual : Symptom diagnosis
OVERHEATING CAUSE ANALYSIS

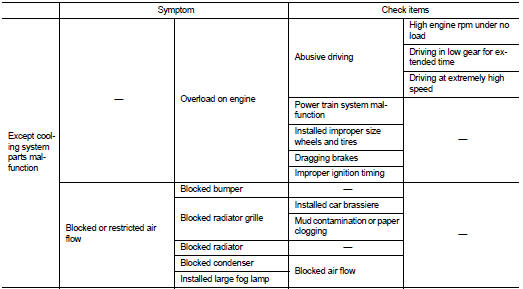

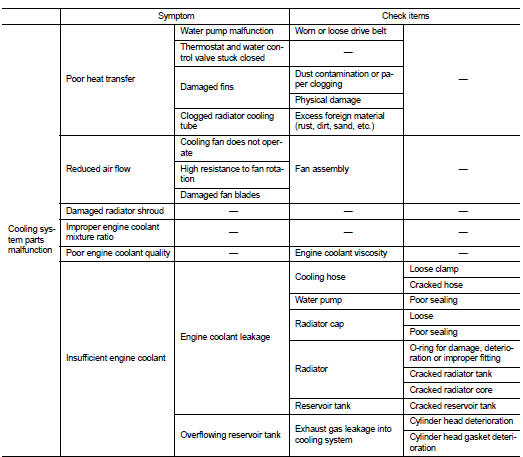

Troubleshooting Chart
Engine Cooling System Schematic
M/T models
CVT models
...
Periodic maintenance
ENGINE COOLANT ...
