Nissan Juke Service and Repair Manual : Symptom diagnosis

INTERIOR LIGHTING SYSTEM SYMPTOMS

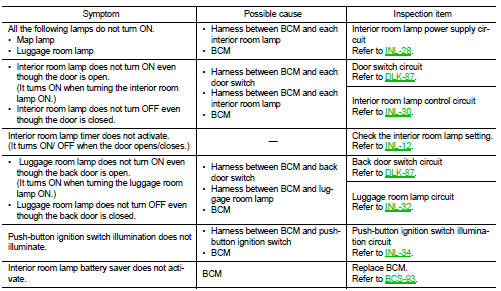

Symptom Table

CAUTION:
Perform the self-diagnosis with CONSULT-III before the symptom diagnosis. Perform the trouble diagnosis if any DTC is detected.

Removal and installation


    Push-button ignition switch illumination circuit
    Description Provides the power supply and the ground to control the push-button ignition switch illumination. Component Function Check 1.CHECK PUSH-BUTTON IGNITION SWITCH ILLUMINATION OPERATION ...
