Nissan Juke Service and Repair Manual : Rear seat (2WD)

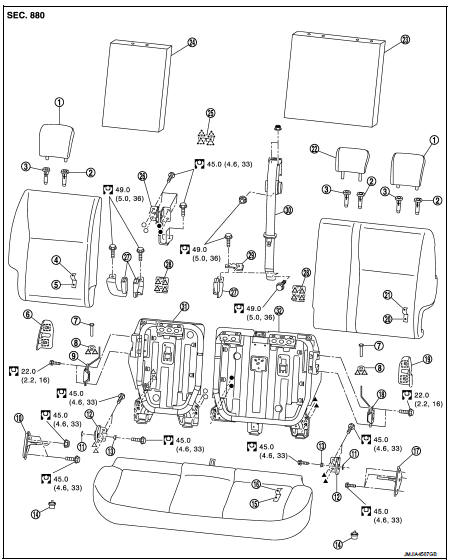

Exploded View

1. Headrest


1. Headrest
2. Headrest holder (locked) 3. Headrest holder (free) 4. Seatback trim RH
5. Seatback pad RH
6. Seat lock cover RH
7. Seatback lock knob
8. Seatback lock knob finisher 9. Seatback lock assembly RH 10. Striker RH
11. Lock washer
12. Side hinge
13. Bush
14. Seat cushion hook
15. Seat cushion pad
16. Seat cushion trim
17. Side hinge LH
18. Seatback lock assembly LH 19. Seat lock cover LH
20. Seatback pad LH
21. Seatback trim LH
22. Center headrest
23. Seatback silencer LH 24. Seatback silencer RH 25. Center seat belt finisher 26. Center hinge
27. Seat belt buckle
28. Seatback tether cover 29. Center seat belt bracket 30. Center seat belt
31. Seatback frame RH
32. Seatback frame LH

: Metal clip: Pawl
: Nm (kg-m, ft-lb): Metal clip
Seat cushion : Removal and Installation: Nm (kg-m, ft-lb)


Seat cushion : Removal and Installation

REMOVAL

1. Lift up front end portion of seat cushion and disengage seat cushion hook.

2. Pull out seat belt buckle from seat cushion.


2. Pull out seat belt buckle from seat cushion.

3. Remove seat cushion from the vehicle.

CAUTION:
When removing and installing, use shop cloths to protect parts from damage.

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:
When removing and installing, use shop cloths to protect parts from damage.

Seat cushion : Disassembly and Assembly

DISASSEMBLY

Remove hog rings, and separate the seat cushion trim and seat cushion pad.

CAUTION:
Before performing separating operation, check the installation position of hog rings.

ASSEMBLY

Note the following item, and assemble in the reverse order of disassembly.

CAUTION:
Always install the hog ring in position.

Seatback : Removal and Installation

LH SIDE SEATBACK

Removal

CAUTION:
Remove seatback with seat cushion installed.

1. Temporarily move seat cushion to the position where center anchor of center seat belts can be removed.

2. Remove center anchor mounting bolt of center seat belt. Remove center anchor.

3. Return seat cushion to the normal position.

4. Unlock seatback lock assembly. Tilt seatback toward vehicle front. Remove headrests.

5. Fold seatback toward vehicle front.

6. Pull up seatback carpet (A). Remove mounting bolts (B) of seatback hinge portion.

7. Remove seatback from the vehicle.


7. Remove seatback from the vehicle.

CAUTION:
When removing and installing, use shop cloths to protect parts from damage.

Installation
Note the following items, and install in the reverse order of removal.

CAUTION:
When removing and installing, use shop cloths to protect parts from damage.

Install seat cushion to the vehicle, and then install seatback.

When installing seatback, tighten mounting bolts according to the numerical order (1, 2, 3, and 4 as shown in the figure).

RH SIDE SEATBACK


RH SIDE SEATBACK

Removal

CAUTION:
Remove seatback with seat cushion installed.

1. Unlock seatback lock assembly. Tilt seatback toward vehicle front. Remove headrest.

2. Fold seatback toward vehicle front.

3. Pull up seatback carpet (A). Remove mounting bolts (B) of seatback hinge portion.

4. Remove seatback from the vehicle.


4. Remove seatback from the vehicle.

CAUTION:
When removing and installing, use shop cloths to protect parts from damage.

Installation

Note the following items, and install in the reverse order of removal.

CAUTION:
When removing and installing, use shop cloths to protect parts from damage.

Install seat cushion to the vehicle, and then install seatback.

When installing seatback, tighten mounting bolts according to the numerical order (1, 2, 3, and 4 as shown in the figure).

Seatback : Disassembly and Assembly


Seatback : Disassembly and Assembly

DISASSEMBLY

LH side seatback
1. Remove headrest holder.

1. Pull seat lock cover in direction indicated by the arrow as shown in the figure. Remove seat lock cover.

: Metal clip


2. Pull tether cover in direction indicated by the arrow as


2. Pull tether cover in direction indicated by the arrow as shown in the figure. Remove tether cover.

: Pawl


3. Open seatback fastener (A) and remove seatback retainer


3. Open seatback fastener (A) and remove seatback retainer (B).

4. Use pincers, etc., to press up pawls as shown by the arrows


4. Use pincers, etc., to press up pawls as shown by the arrows in the figure, and remove headrest holder from seatback.

CAUTION:
Before installing headrest holder check its orientation.

(front/rear and right/left)

2. Remove seatback lock knob finisher.


2. Remove seatback lock knob finisher.

1. Rotate seatback lock knob counterclockwise. Remove seatback lock knob.

2. Push up seatback lock knob finisher while pressing pawls


2. Push up seatback lock knob finisher while pressing pawls indicated by arrows as shown in the figure. Remove seatback lock finisher from seatback.

CAUTION:
When installing seatback lock knob finisher, check front and rear orientation and be careful to install it normally.

3. Remove center seat belt finisher from seatback.


3. Remove center seat belt finisher from seatback.

Lift up front of center seat belt finisher. Disengage front pawls.

Pull center seat belt finisher toward seat front. Disengage rear pawls.

: Pawl


4. Remove seatback trim and seatback pad from seatback frame


4. Remove seatback trim and seatback pad from seatback frame 5. Remove hog rings, and separate the seatback trim and seatback pad.

CAUTION:
Before performing separating operation, check the installation position of hog rings.

6. Remove seatback silencer from seatback frame.

7. Remove seatback lock assembly mounting bolts, and then remove seatback lock assembly from seatback frame
8. Remove center seat belt retractor from seatback frame.

Refer to SB-12, "SEAT BELT RETRACTOR : Removal and Installation".

RH side seatback
1. Remove headrest holder.

1. Pull seat lock cover in direction indicated by the arrow as shown in the figure. Remove seat lock cover.

: Metal clip


2. Pull tether cover in direction indicated by the arrow as


2. Pull tether cover in direction indicated by the arrow as shown in the figure. Remove tether cover.

: Pawl


3. Open seatback fastener (A) and remove seatback retainer


3. Open seatback fastener (A) and remove seatback retainer (B).

4. Use pincers, etc., to press up pawls as shown by the arrows


4. Use pincers, etc., to press up pawls as shown by the arrows in the figure, and remove headrest holder from seatback.

CAUTION:
Before installing headrest holder check its orientation.

(front/rear and right/left)

2. Remove seatback lock knob finisher.


2. Remove seatback lock knob finisher.

1. Rotate seatback lock knob counterclockwise. Remove seatback lock knob.

2. Push up seatback lock knob finisher while pressing pawls


2. Push up seatback lock knob finisher while pressing pawls indicated by arrows as shown in the figure. Remove seatback lock finisher from seatback.

CAUTION:
When installing seatback lock knob finisher, check front and rear orientation and be careful to install it normally.

3. Remove seatback trim and seatback pad from seatback frame.


3. Remove seatback trim and seatback pad from seatback frame.

4. Remove hog rings, and separate the seatback trim and seatback pad.

CAUTION:
Before performing separating operation, check the installation position of hog rings.

5. Remove seatback silencer from seatback frame.

6. Remove seatback lock assembly mounting bolts, and then remove seatback lock assembly from seatback frame.

INSTALLATION

Note the following, and assemble in the revers

CAUTION:
Always install the hog ring in position.

SEATBACK HINGE : Removal and Installation

CENTER HINGE

Removal

1. Remove seatback LH and RH from the vehicle.

Refer to SE-33, "SEATBACK : Removal and Installation".

2. Remove seat cushion from the vehicle.

Refer to SE-33, "SEAT CUSHION : Removal and Installation".

3. Remove center hinge mounting bolts, and then remove center hinge from the vehicle.

Installation
Note the following items, and install in the reverse order of removal.

CAUTION:
When installing center hinge, tighten mounting bolts to the specified torque according to the numerical order as shown in the figure

.

1. Temporarily tighten mounting bolt (1).

2. Tighten mounting bolts in numerical order (2 and 3 as shown in the figure) to the specified torque.

For the specified torque, refer to SE-32, "Exploded View".

: Vehicle front


SIDE HINGE


SIDE HINGE

Removal
1. Remove seatback from the vehicle. Refer to SE-33, "SEATBACK : Removal and Installation".

2. Remove side hinge mounting bolt, and then remove side hinge from luggage side lower finisher.

Installation
Installation is the reverse order of removal. Tighten bolts to the specified torque.

For the specified torque, refer to SE-32, "Exploded View".

Seatback striker : Removal and Installation

REMOVAL

1. Remove seatback LH and RH from the vehicle.

Refer to SE-33, "SEATBACK : Removal and Installation".

2. Remove seat cushion from the vehicle.

Refer to SE-33, "SEAT CUSHION : Removal and Installation".

3. Remove side hinge from the vehicle.

Refer to SE-38, "SEATBACK HINGE : Removal and Installation".

4. Remove outer anchor mounting anchor bolt, and then remove outer anchor.

5. Remove luggage side lower finisher from the vehicle.

Refer to INT-31, "LUGGAGE SIDE LOWER FINISHER : Removal and Installation".

6. Remove mounting bolts or nuts of striker, and then remove striker from the vehicle.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:
When installing striker, tighten mounting bolts or nuts to the specified torque according to the numerical order as shown in the figure.

1. Temporarily tighten mounting bolts in numerical order (1 and 2 as shown in the figure).

2. Tighten mounting bolts or nuts to the specified torque in numerical order (3, 4, and 5 as shown in the figure).

For the specified torque, refer to SE-32, "Exploded View".

: Vehicle front
