Nissan Juke Service and Repair Manual : Power window main switch

Reference Value

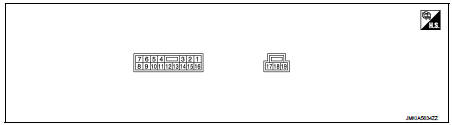

TERMINAL LAYOUT

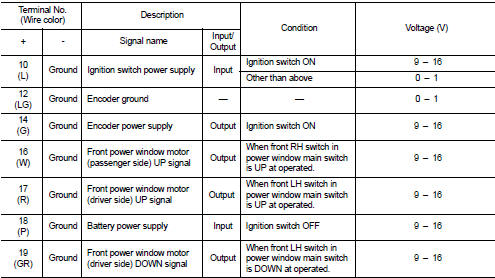

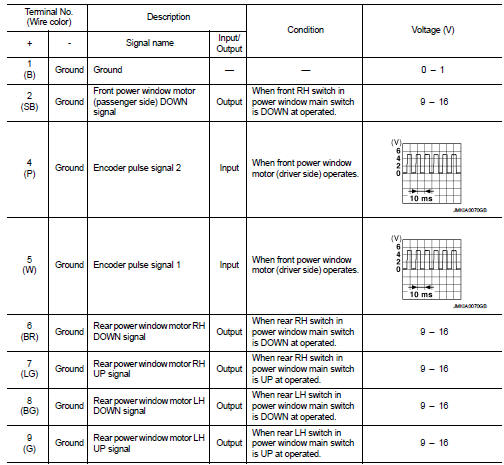

PHYSICAL VALUES


PHYSICAL VALUES

POWER WINDOW MAIN SWITCH


Fail Safe


Fail Safe

FAIL-SAFE CONTROL

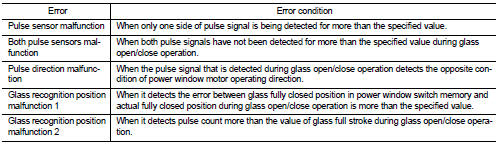

Switches to fail-safe control when malfunction is detected in encoder signal that detects up/down speed and direction of door glass. Switches to fail-safe control when error beyond regulation value is detected between the fully closed position and the actual position of the glass.

It changes to condition before initialization and the following functions do


It changes to condition before initialization and the following functions do not operate when switched to failsafe control.

• Auto-up operation
• Anti-pinch function

Perform initial operation to recover when switched to fail-safe mode. However, it switches back to fail-safe control when malfunction is found in power window main switch or front power window motor (driver side).

    BCM (body control module)
    List of ECU Reference ...

    Wiring diagram
    POWER WINDOW SYSTEM LHD LHD : Wiring Diagram For connector terminal arrangements, harness layouts, and alphabets in a (option abbreviation; if not described in wiring diagram), refer to GI-12, &q ...
