Nissan Juke Service and Repair Manual : Manual heater system

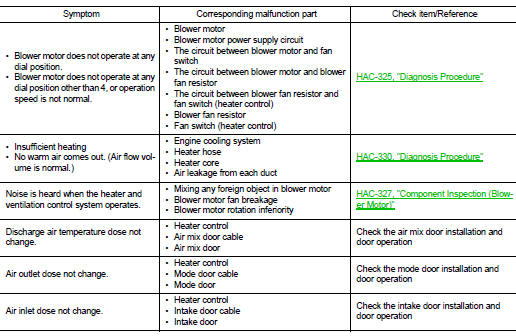

Symptom Table
NOTE
:
Perform self-diagnosis with CONSULT-III before performing the symptom diagnosis.
If any malfunction result
or DTC is detected, perform the corresponding diagnosis.
Insufficient heating
Description
Symptom
• Insufficient heating
• No warm air comes out. (Air flow volume is normal.)
Diagnosis Procedure
NOTE:
Perform self-diagnosis with CONSULT-III before performing symptom diagn ...
