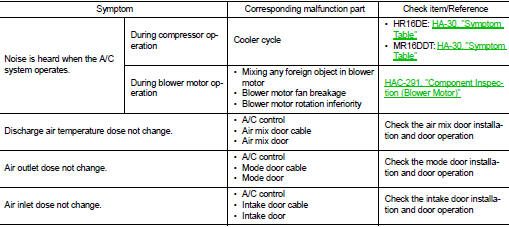

Symptom Table
NOTE
:
Perform self-diagnosis with CONSULT-III before performing the symptom diagnosis.
If any malfunction result
or DTC is detected, perform the corresponding diagnosis
*: With K9K engine models

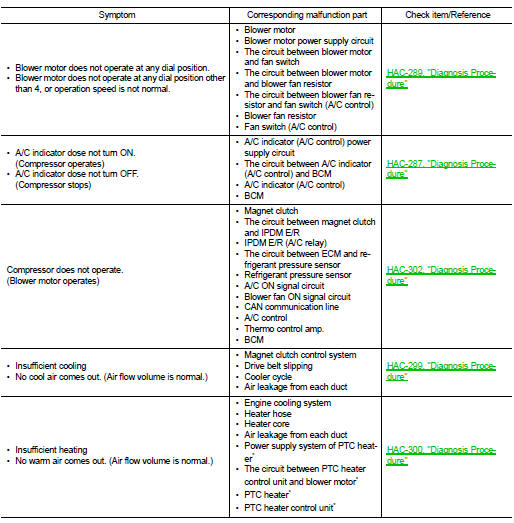

Insufficient cooling
Description
Symptom
• Insufficient cooling
• No cool air comes out. (Air flow volume is normal.)
Diagnosis Procedure
NOTE:
Perform self-diagnosis with CONSULT-III before performing symptom diagn ...
