Nissan Juke Service and Repair Manual : Inside mirror

Exploded View

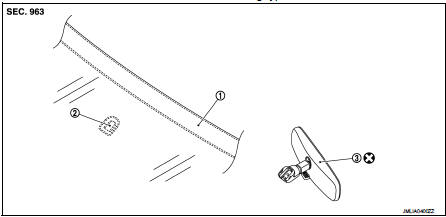

Manual anti-dazzling type

1. Windshield glass


1. Windshield glass
2. Mirror base
3. Inside mirror assembly

Auto anti-dazzling type: Do not reuse

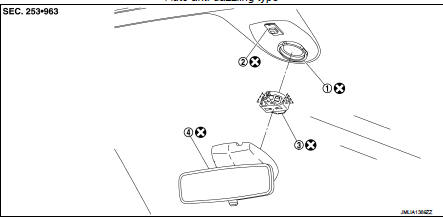

Auto anti-dazzling type

1. Rain sensor bracket


1. Rain sensor bracket 2. Mirror base
3. Rain sensor
4. Inside mirror assembly

: Do not reuse: Pawl
Removal and Installation: Do not reuse


Removal and Installation

CAUTION:
Never reuse the inside mirror assembly disassembled from mirror base.

Manual anti-dazzling type

REMOVAL

Slide the inside mirror assembly upward to remove.

NOTE

:
Insert flat-bladed screwdriver (A) under the inside mirror (1).

Slide the inside mirror to the upper side while pushing the pawl downward.

CAUTION:
Never use excessive force to remove the inside mirror because it is inserted tightly into the mirror base.

INSTALLATION


INSTALLATION

Install in the reverse order of removal.

Auto anti-dazzling type REMOVAL

Slide the inside mirror assembly upward to remove.

INSTALLATION

Install in the reverse order of removal.
