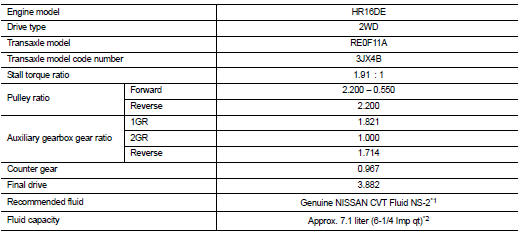

Nissan Juke Service and Repair Manual : General Specification
CAUTION:
• Use only Genuine NISSAN CVT Fluid NS-2. Never mix with other fluid.
• Use only Genuine NISSAN CVT Fluid NS-2. Using transmission fluid other than Genuine NISSAN CVT Fluid NS-2 will damage the CVT, which is not covered by the warranty.
*1: Refer to MA-13, "Fluids and Lubricants".
*2: The CVT fluid capacity is the reference value.
Shift Characteristics
CAUTION:
Lock-up is engaged at the vehicle speed of approximately 10 km/h (11 MPH) to 90
km/h (56 MPH). ...
