Nissan Juke Service and Repair Manual : Diagnosis system (multi display unit)

CONSULT-III Function

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with multi display unit.

SELF DIAGNOSTIC RESULT


SELF DIAGNOSTIC RESULT

Refer to AV-111, "DTC Index".

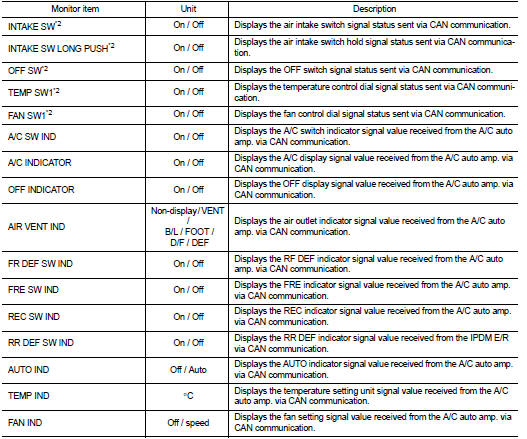

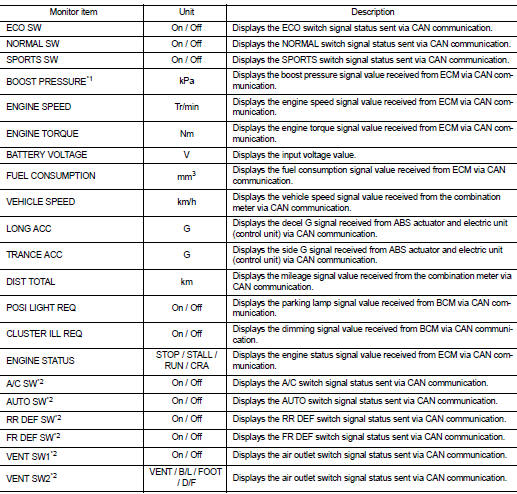

DATA MONITOR


• *1: MR16DDT


• *1: MR16DDT
• *2: This is not used to determine ON/OFF of the indicator lamp.

ACTIVE TEST

Indicator


Indicator

Ecu diagnosis information


    Handling precaution
