Nissan Juke Service and Repair Manual : Diagnosis system (BCM) (with intelligent key system)

Nissan Juke Service and Repair Manual / Defogger / System description / Diagnosis system (BCM) (with intelligent key system)

Common item

COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

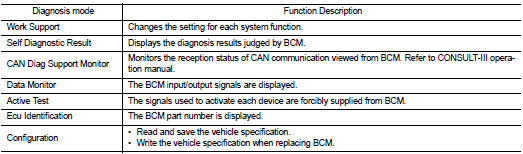

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with BCM.

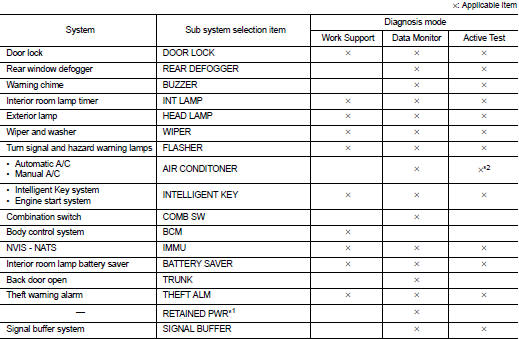

SYSTEM APPLICATION


SYSTEM APPLICATION

BCM can perform the following functions for each system.

NOTE

:
It can perform the diagnosis modes except the following for all sub system selection items.

NOTE:


NOTE

:
• *1: This item is displayed, but not used.

• *2: For models with automatic A/C, this diagnosis mode is not used.

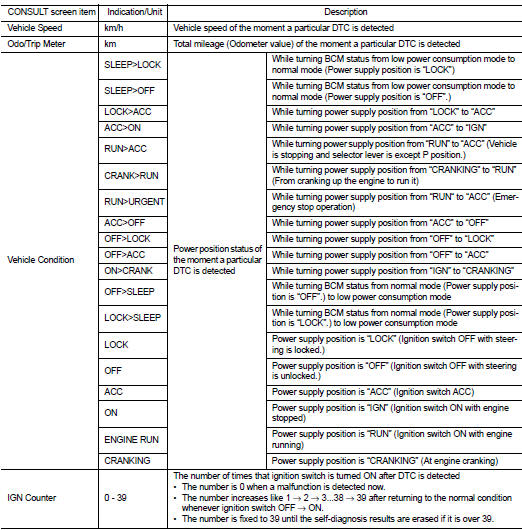

FREEZE FRAME DATA (FFD)

The BCM records the following vehicle condition at the time a particular DTC is detected, and displays on CONSULT-III.

Rear window defogger


Rear window defogger

REAR WINDOW DEFOGGER : CONSULT-III Function (BCM - REAR DEFOGGER)

Data monitor

ACTIVE TEST


ACTIVE TEST
