Nissan Juke Service and Repair Manual : Combination meter

Reference Value

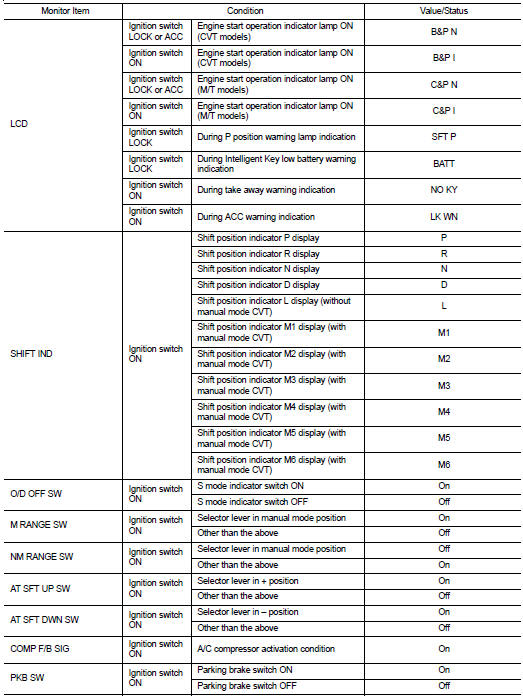

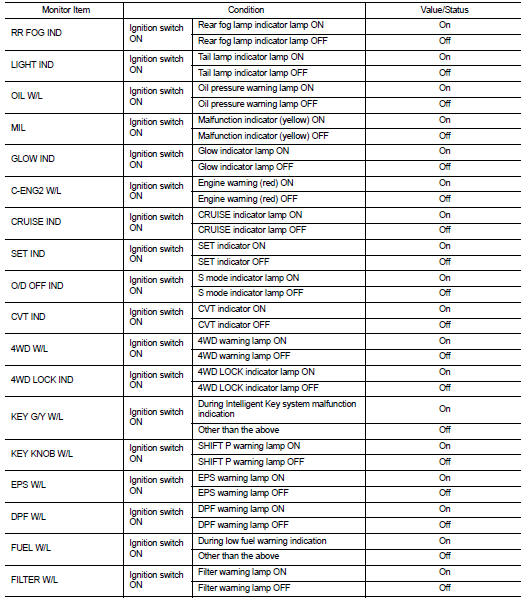

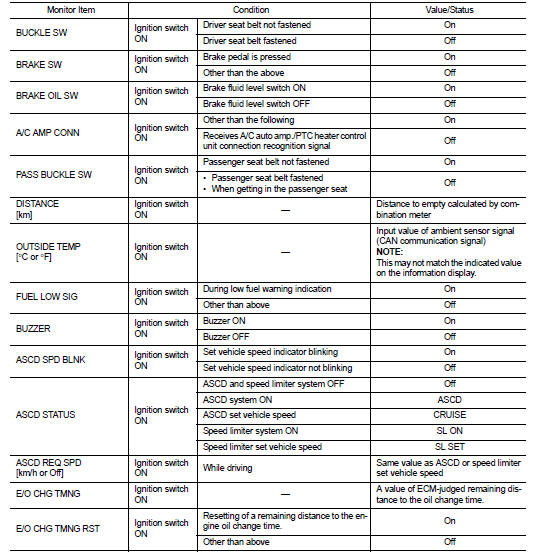

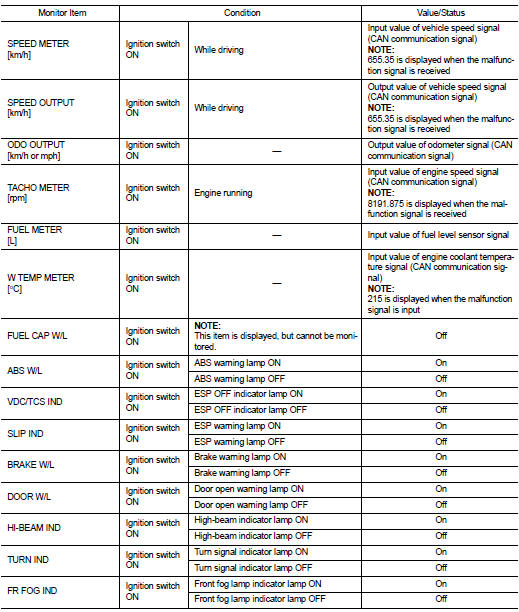

VALUES ON THE DIAGNOSIS TOOL




NOTE:


NOTE

:
Some items are not available according to vehicle specification.

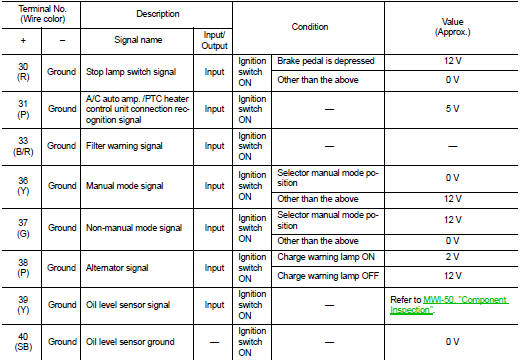

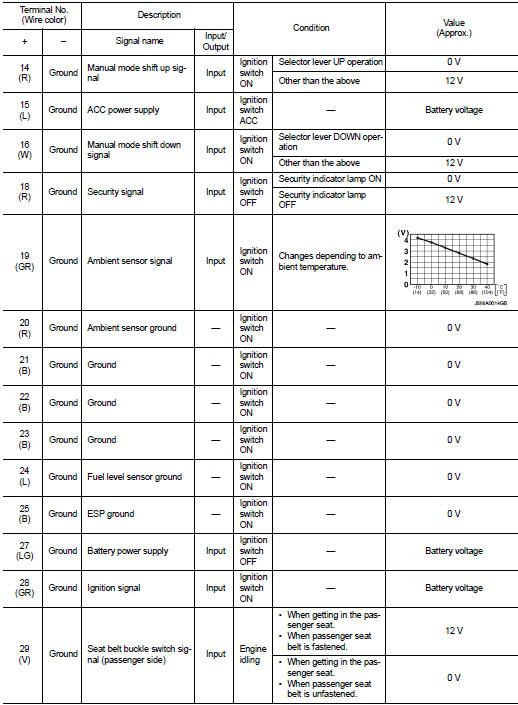

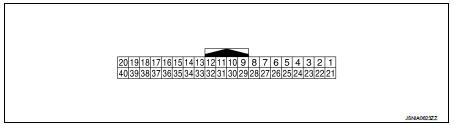

TERMINAL LAYOU

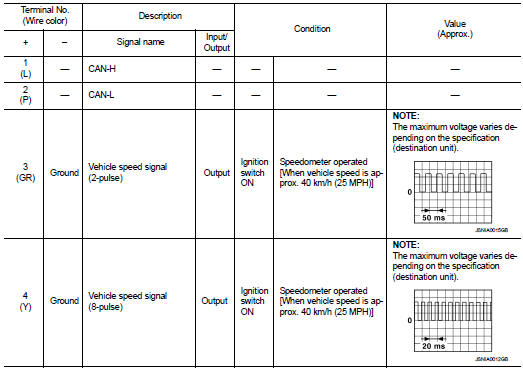

PHYSICAL VALUES

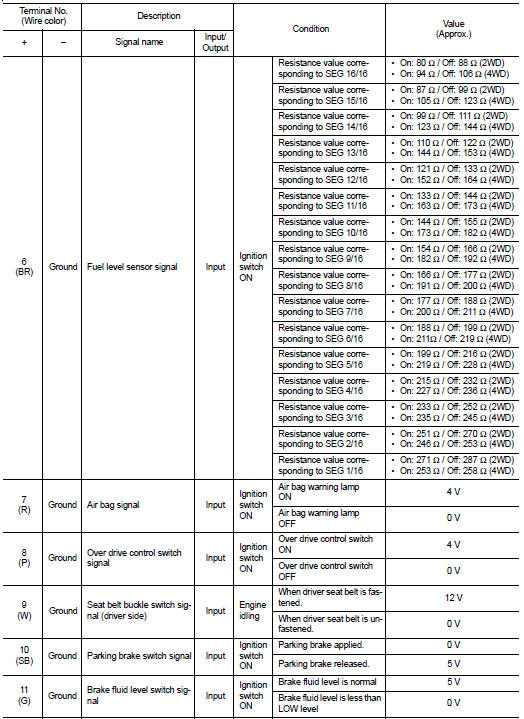

PHYSICAL VALUES




Fail-Safe


Fail-Safe

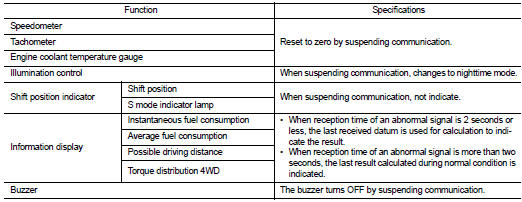

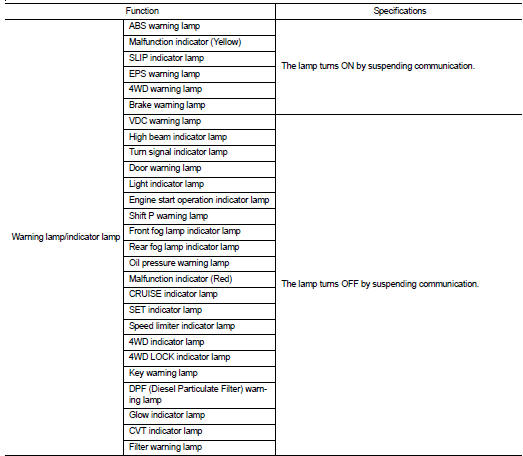

FAIL-SAFE

The combination meter activates the fail-safe control if CAN communication with each unit is malfunctioning.

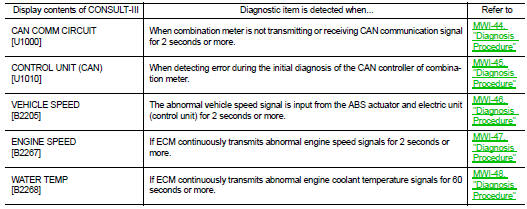

DTC Index
