Nissan Juke Owners Manual : Towing recommended by NISSAN

Two-Wheel Drive (2WD) models


Two-Wheel Drive (2WD) models

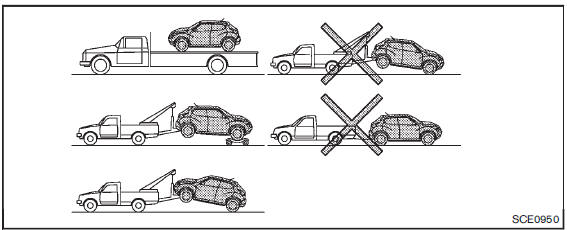

NISSAN recommends that your vehicle be towed with the driving (front) wheels off the ground or place the vehicle on a flat bed truck as illustrated.

CAUTION

•  Never tow CVT models with the front wheels on the ground or four wheels on the ground (forward or backward), as this may cause serious and expensive damage to the transmission. If it is necessary to tow the vehicle with the rear wheels raised, always use towing dollies under the front wheels.

• When towing CVT models with the front wheels on towing dollies: Push the ignition switch to the ACC or ON position, and secure the steering wheel in a straightahead position with a rope or similar device. Move the shift lever to the N (Neutral) position.

• When towing a CVT model with the rear wheels on the ground (if you do not use towing dollies): Always release the parking brake.

All-wheel drive models


All-wheel drive models

All-Wheel Drive (AWD) models

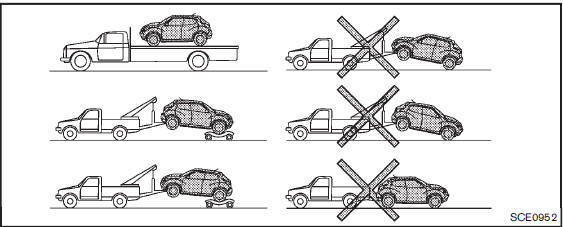

NISSAN recommends that towing dollies be used when towing your vehicle or the vehicle be placed on a flat bed truck as illustrated.

CAUTION

Never tow AWD models with any of the wheels on the ground as this may cause serious and expensive damage to the powertrain.
