Nissan Juke Service and Repair Manual : TCM

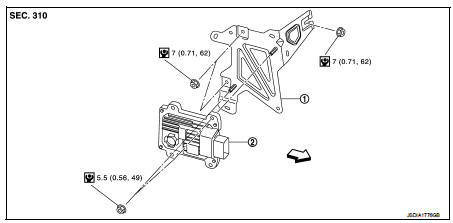

Exploded View

1. Bracket


1. Bracket 2. TCM

: N·m (kg-m, in-lb):Vehicle front
Removal and Installation: N·m (kg-m, in-lb)


Removal and Installation

CAUTION:
When replacing TCM, note the “CVTF DETERIORATION DATE” value displayed on CONSULT-III “CONFORM CVTF DETERIORTN” in MAINTENANCE BOOKLET, before start the operation.

NOTE:

When replacing TCM and transaxle assembly as a set, replace transaxle assembly first and then replace TCM. Refer to TM-374, "Description".

REMOVAL

1. Remove the battery. Refer to PG-124, "Removal and Installation".

2. Remove the air cleaner case. Refer to EM-161, "Removal and Installation".

3. Disconnect the TCM connector.

4. Remove the TCM.

5. Remove the bracket.

INSTALLATION

Installation is the reverse order of removal.

Adjustment

ADJUSTMENT AFTER INSTALLATION

Perform "ADDITIONAL SERVICE WHEN REPLACING TCM". Refer to TM-374, "Description
