Nissan Juke Service and Repair Manual : Symptom diagnosis
OVERHEATING CAUSE ANALYSIS

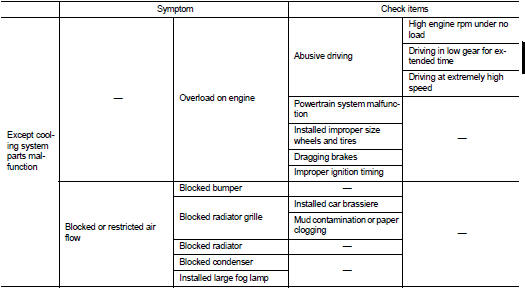

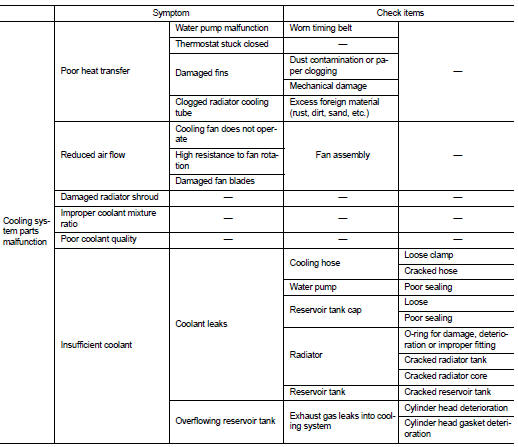

Troubleshooting Chart
Basic inspection
Radiator
Inspection
Check radiator for mud or clogging. If necessary, clean radiator as follows.
CAUTION:
• Be careful not to bend or damage the radiator fins.
• When radiator is cleaned withou ...
